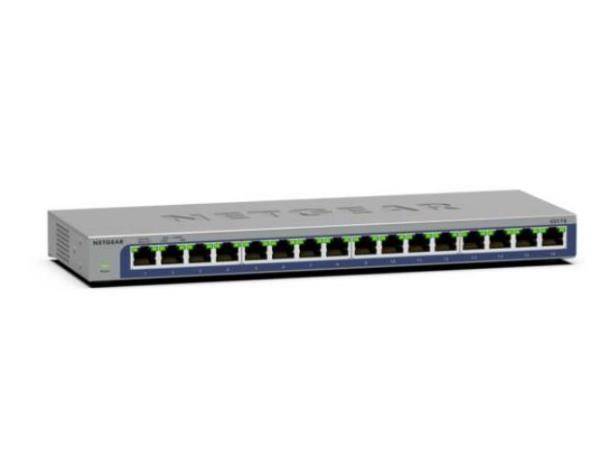

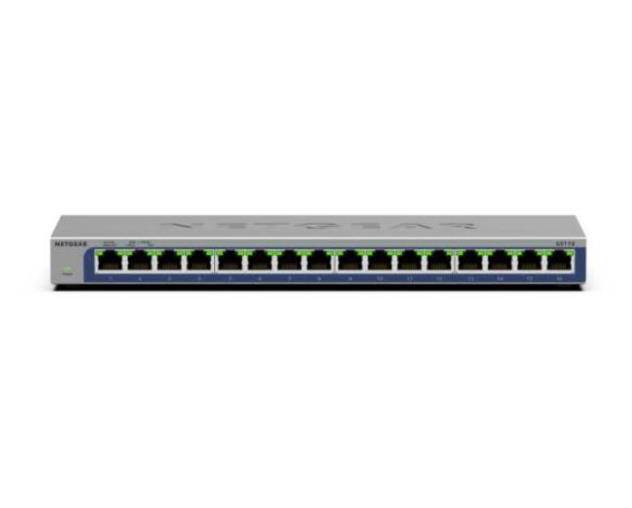

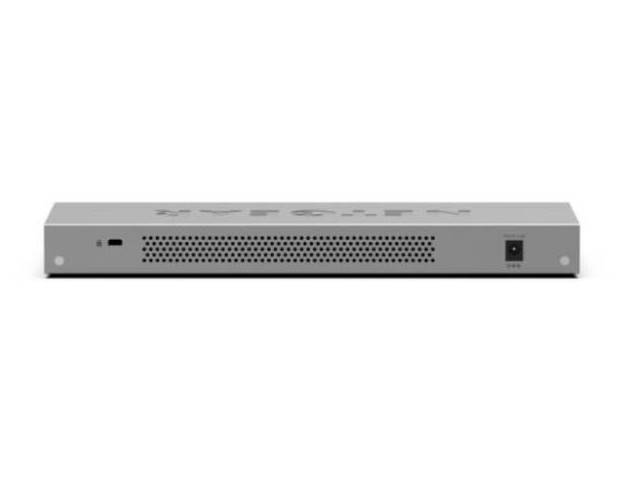

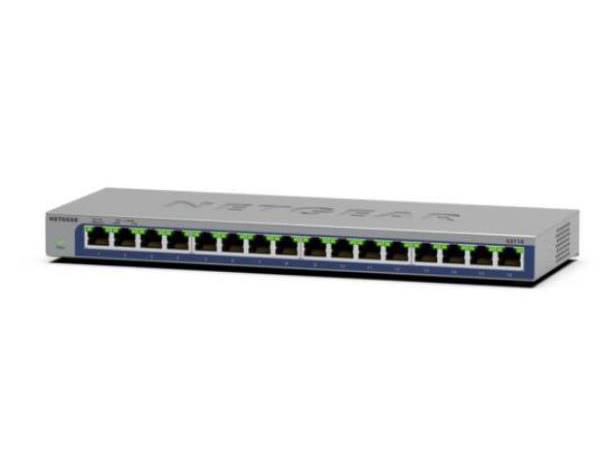

The NETGEAR GS116-300NAS is a 16-port Gigabit unmanaged Ethernet switch with a 32 Gbps switching capacity and 512 KB packet buffer. Key specs include 10/100/1000 Mbps ports, support for jumbo frames up to 9,000 bytes, and energy-efficient design. It is a fanless, desktop or wall-mountable switch with a compact metal housing and a weight of approximately 1.96 lbs.

General Specifications

• Model: GS116-300NAS
• Product Type: Unmanaged Gigabit Ethernet Switch
• Number of Ports: 16
• Form Factor: Desktop, wall-mountable, compact
• Power Consumption: 8.1 watts (max)
• Power Input: 12V DC

Performance & Connectivity

• Switching Capacity: 32 Gbps (non-blocking)
• MAC Address Table Size: 8,000 entries
• Packet Buffer Size: 512 KB
• Jumbo Frame Support: Up to 9,000 bytes
• Data Speed: 10/100/1000 Mbps (Gigabit Ethernet)
• Latency: <3.2 μsec (at 1000 Mbps)
• Features: IEEE 802.1p QoS, Energy-Efficient Ethernet (IEEE 802.3az), auto-negotiation

Physical & Environmental

• Dimensions: 11.3" x 4.0" x 1.1" (286 mm x 102 mm x 27 mm)
• Weight: 1.96 lbs (0.89 kg)
• Operating Temperature: 0° to 50° C (32° to 122° F)
• Storage Temperature: -20° to 70° C (-4° to 158° F)
• Noise: Silent operation due to fanless design
