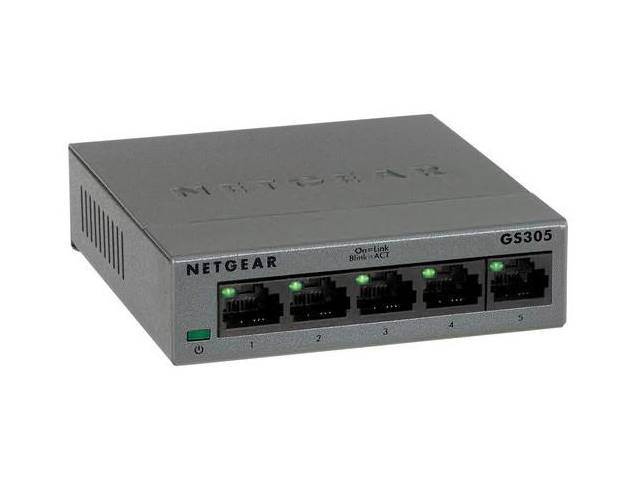

The GS305-300PAS is a 5-port unmanaged Gigabit Ethernet switch from Netgear designed for home and small office use. Key specs include 5 x 10/100/1000 Mbps ports, a 10 Gbps switching capacity, plug-and-play setup, and a fanless design for silent operation. It features energy-efficient operation, a durable metal case, and support for auto-MDI/MDIX and QoS.

General specifications

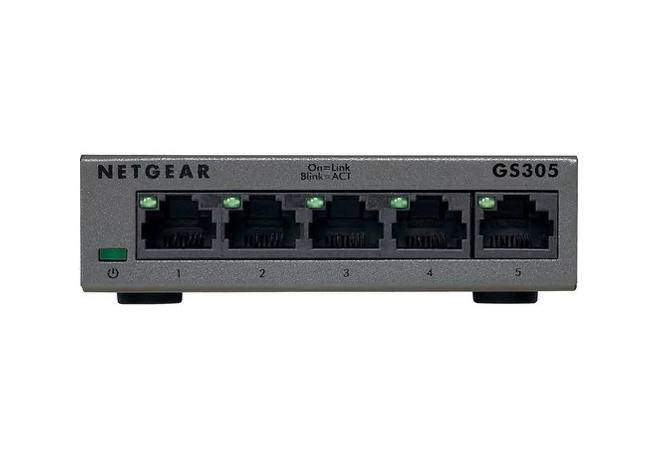

• Ports: 5 x 10/100/1000Base-T Gigabit Ethernet ports
• Switching Capacity: 10 Gbps (non-blocking)
• Management: Unmanaged (plug-and-play)
• MAC Address Table: 2K
• Packet Buffer: 128 KB

Performance and features

• Auto-Negotiation: Auto-negotiation on all ports for speed and duplex
• Auto-MDI/MDIX: Yes, eliminates the need for crossover cables
• Energy Efficient: Yes, compliant with IEEE802.3az
• Jumbo Frame Support: 9,216 bytes
• QoS: 802.1p Priority QoS support

Physical and environmental

• Dimensions: 1.1" x 4" x 3.7" (H x W x D) or 101 x 94 x 29 mm
• Weight: Approximately 0.55 lb (0.25kg)
• Case: Durable, fanless metal enclosure
• Mounting: Desktop or wall-mountable
• Power Consumption: 2.15W maximum
• Silent Operation: Yes, due to its fanless design
