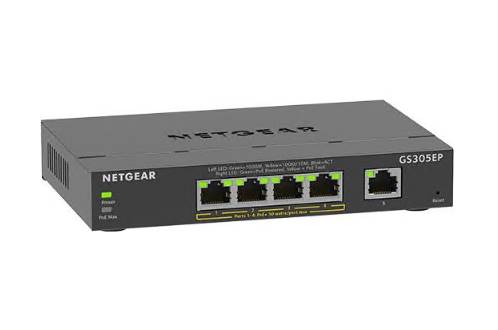

The Netgear GS305EP-100NAS is a 5-port Gigabit Ethernet switch with 4 PoE+ ports, a 63W total power budget, and Easy Smart management. Key specifications include a non-blocking 10Gbps switching bandwidth, support for up to 9,216-byte jumbo frames, and energy-efficient Ethernet (IEEE 802.3az). It is designed for desktop or wall mounting and includes features like VLAN support, QoS, and priority queuing (WRR).

General specifications

• Model: GS305EP-100NAS
• Product Type: 5-Port Gigabit Ethernet Easy Smart Managed Plus PoE Switch
• Form Factor: Desktop or wall mountable
• Management: Easy Smart Managed Essentials

Network specifications

• Ports: 5 x RJ45 Gigabit Ethernet ports
• PoE+ Ports: 4 x RJ45 Gigabit Ethernet PoE+ (802.3at)
• PoE+ Budget: 63W total
• Switching Bandwidth: 10Gbps (non-blocking)
• Jumbo Frame Support: 9,216 bytes
• IEEE Standards: Supports IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.1p, 802.1Q, 802.3af, and 802.3at (PoE+)

Features

• Energy Efficient: Yes, compliant with IEEE 802.3az
• Priority Queuing: Yes, WRR (Weighted Round Robin)
• Uninterrupted PoE: Yes
• Management Features: VLAN, Quality of Service (QoS), port mirroring, link aggregation, and more
