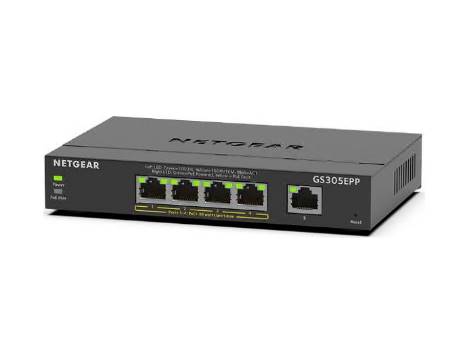

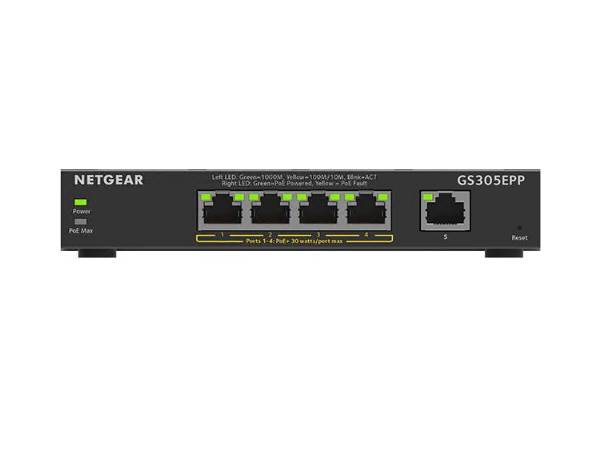

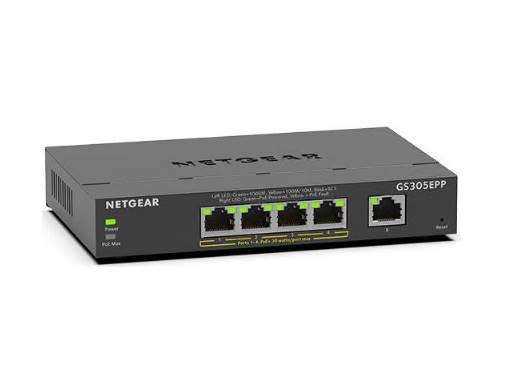

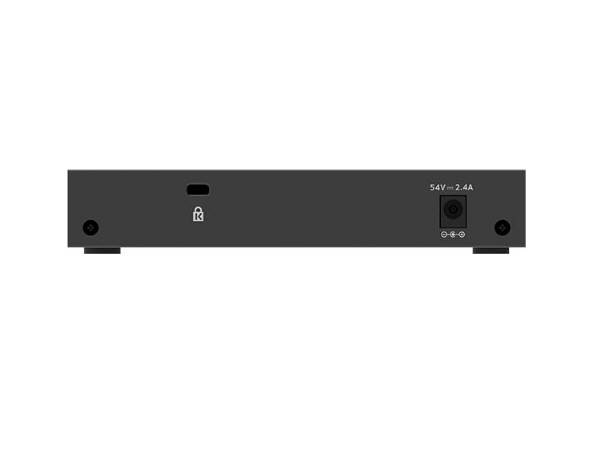

The GS305EPP-100NAS is a 5-port, Layer 2, "Easy Smart Managed Plus" Gigabit Ethernet switch from Netgear with a 120W total PoE budget. It features four Gigabit PoE+ ports (802.3at) capable of delivering up to 30W per port, plus one additional Gigabit uplink port. Its specifications include a 10 Gb/s switching bandwidth, 192 kB packet buffer, support for jumbo frames (9216 bytes), and various network protocols like VLAN, QoS, and IGMP snooping.

Key specifications

• Ports: 5 x Gigabit Ethernet, 4x PoE+ (802.3at), 1x Uplink
• PoE Power Budget: 120W total
• PoE Power per Port: Up to 30W
• Switching Bandwidth: 10 Gb/s (Non-Blocking)
• Packet Buffer: 192 kB
• Management: Easy Smart Managed Essentials, Layer 2
• Supported Protocols: VLAN, QoS, IGMP Snooping, Auto-MDI/MDIX, Link Aggregation, Port Mirroring
• Jumbo Frame Support: 9216 Bytes
• MAC Address Table: 4K entries
• Security: DoS Attack Prevention, Storm Control
• Dimensions: 6.2 x 4 x 1.1 inches / 158 x 101 x 27 mm
• Weight: 0.9 lb / 0.4 kg
• Form Factor: Desktop, wall-mountable
• Cooling: Passive, fanless
