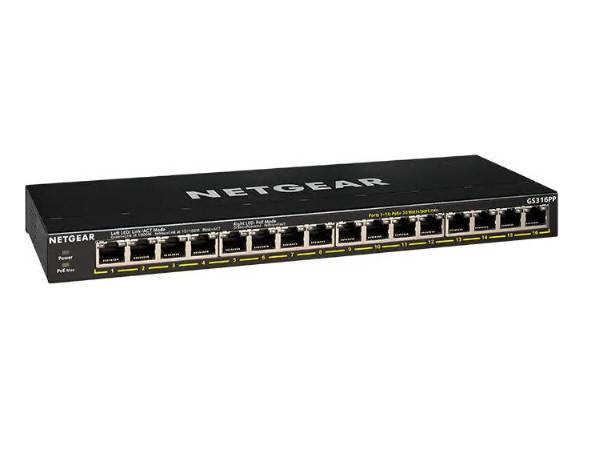

The GS316PP-100NAS is a 16-port, unmanaged Gigabit Ethernet switch with a 183W Power over Ethernet (PoE+) budget. Key specifications include support for 10/100/1000 Mbps speeds, a 4K MAC table size, a 1MB packet buffer, and 9216-byte jumbo frame support. It features a fanless, metal design for silent, durable operation and is compliant with regulations like RoHS and WEEE.

General

• Product Name: 16-Port Gigabit Ethernet Unmanaged PoE+ Switch
• Model: GS316PP-100NAS
• Type: Unmanaged, Layer 2

Network

• Speed: Gigabit Ethernet (10/100/1000 Mbps)
• Number of Ports: 16 x RJ45
• PoE: Yes, with 183W max power budget
• PoE Budget: 183W (with the option to increase via an optional power adapter)
• MAC Table Size: 4K
• Jumbo Frame Support: 9216 bytes
• Buffer Memory: 1 MB
• Energy Efficient Ethernet: Yes
• Auto-MDI/MDIX: Yes
• Auto-Negotiation: Yes

Physical

• Dimensions: 11.3 in (W) x 4 in (D) x 1.1 in (H) (286 x 102 x 27 mm)
• Weight: 1.94 lbs (0.88 kg)
• Form Factor: Desktop or wall-mountable
• Case: Durable, rugged metal case
• Design: Fanless for silent operation

Certifications and Compliance

• NDAA Compliant: Yes
• Environmental: RoHS, WEEE, REACH
• Other: Energy-related Products Directive (ErP)
