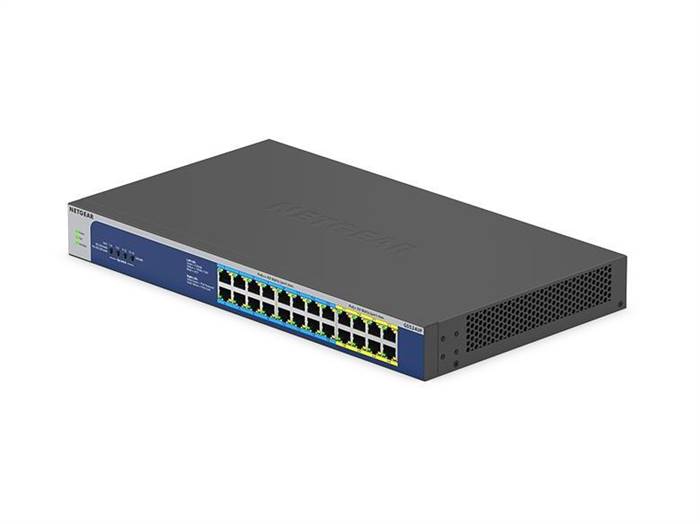

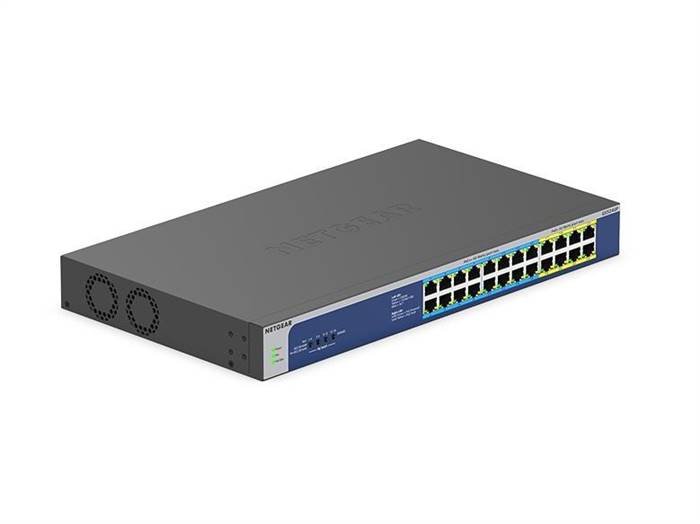

The NETGEAR GS524UP-100NAS is a 24-port, unmanaged, high-power PoE+ and PoE++ Gigabit Ethernet switch with a 480W total PoE power budget. It features 16 ports for Ultra60 PoE++ (up to 60W each) and 8 ports for PoE+ (up to 30W each). The switch has a 48 Gb/s non-blocking switching capacity and is designed for plug-and-play setup without the need for software or configuration.

Key specifications

• Ports: 24 x 1Gbps Gigabit Ethernet ports
• PoE Ports:
• 16 x Ultra60 PoE++ (up to 60W per port)
• 8 x PoE+ (up to 30W per port)
• PoE Budget: 480W total
• Switching Capacity: 48 Gb/s (non-blocking)
• Switching Type: Unmanaged
• Form Factor: Desktop and rack-mountable
• Features:
• Plug-and-play setup
• Auto-negotiation and Auto-MDI/MDIX

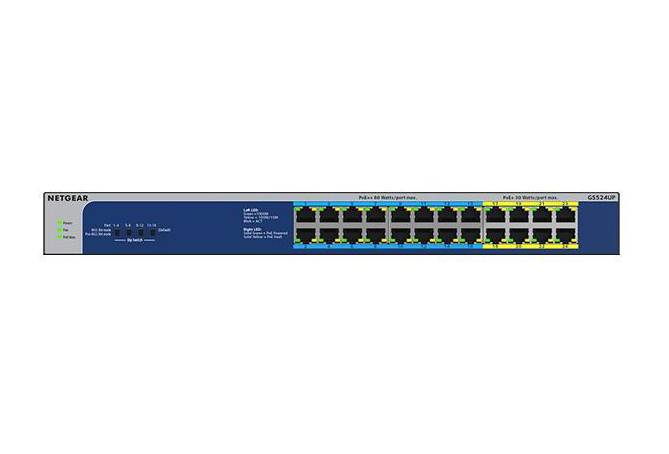

• Per-port LEDs for activity and speed
• Energy-efficient technology
• Dimensions: 15.4 x 8.7 x 1.7 inches (390 x 220 x 43 mm)
• Weight: 6.83 lb (3.1 kg)

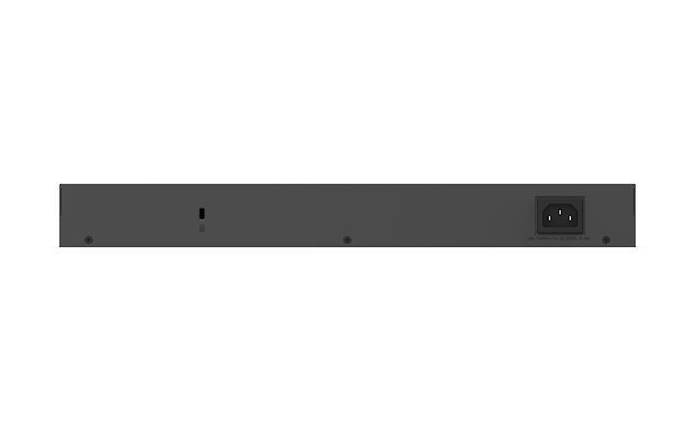

• Power: Internal power supply, 100-240 VAC, 50/60 Hz
