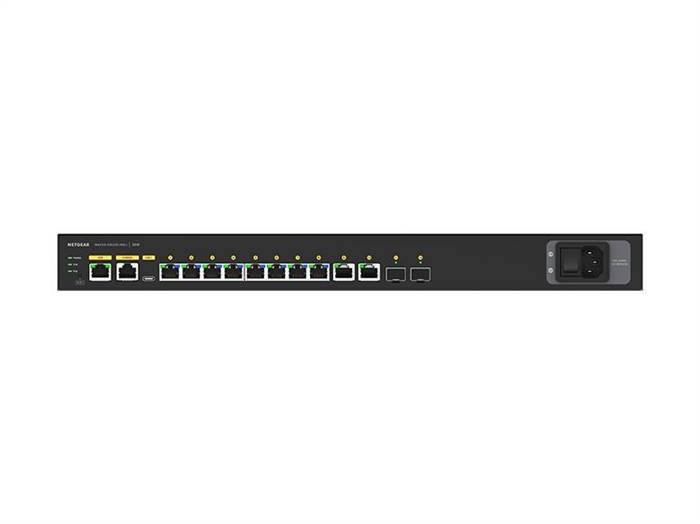

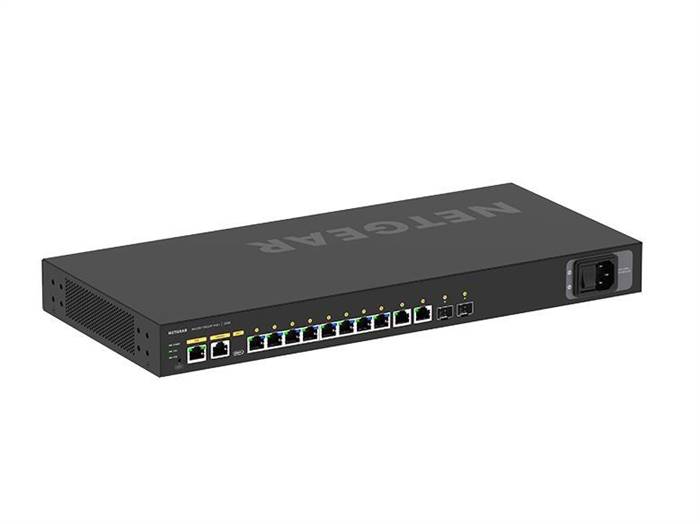

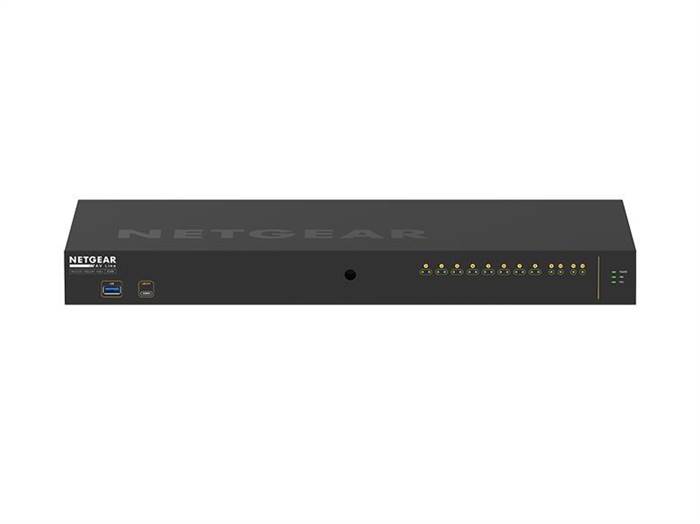

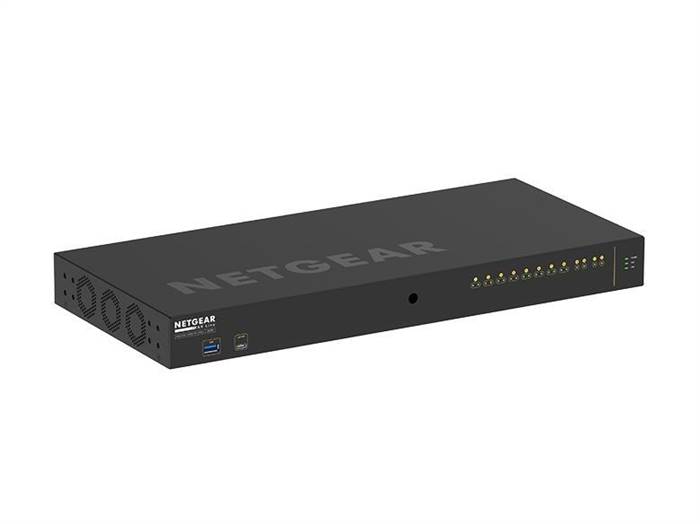

The Netgear GSM4212PX-100NAS is a 12-port managed network switch with 8 PoE+ Gigabit Ethernet ports, a 240W PoE budget, and 2 SFP+ 10GbE ports. Key features include support for AV over IP, a dedicated AV web-based GUI, Layer 2/3 protocols, jumbo frame support, and a 60 Gb/s switching bandwidth. It is rack-mountable, has a 1U form factor, and includes two USB-C ports and one USB-A port for additional connectivity.

Key specifications

• Port configuration:
• 8 x RJ45 Gigabit Ethernet PoE+ (30W/port)
• 2 x RJ45 Gigabit Ethernet LAN
• 2 x SFP+ 10 GbE
• 2 x USB-C
• 1 x USB-A
• Performance:
• Switching Bandwidth: 60 Gb/s
• Forwarding Rate: 44.64 Mpps
• MAC Address Table Size: 16K
• PoE (Power over Ethernet):
• PoE Power Budget: 240W
• Protocols and Features:
• Layer 2, Layer 3
• DHCP Server
• IGMP Snooping
• Jumbo Frames Support: Up to 12,000 Bytes
• DHCP Snooping
• DoS Attack Prevention
• RADIUS Authentication
• Physical and electrical:
• Dimensions: 17.3 x 7.9 x 1.7 inches / 440 x 200 x 43.2 mm
• Weight: 6.28 lb / 2.85 kg
• Power Consumption (Max with PoE): 306.4W
• Power Consumption (Idle without PoE): 25W
• Other:
• Rack-mountable
• Stackable: No
• Acoustics: Fanless or 39.22dB@25ºC
• AVB Support: Yes (requires electronic license)

Compatible Transceivers

The Netgear GSM4212PX-100NAS switch has two SFP+ ports that are compatible with 10G fiber transceivers.
