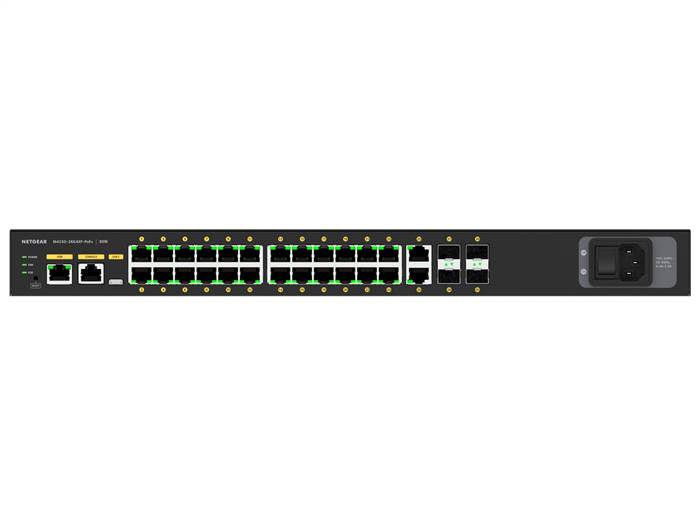

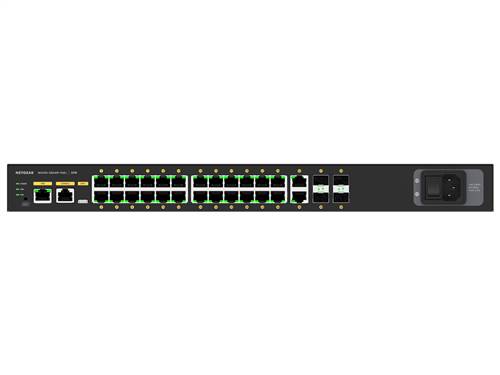

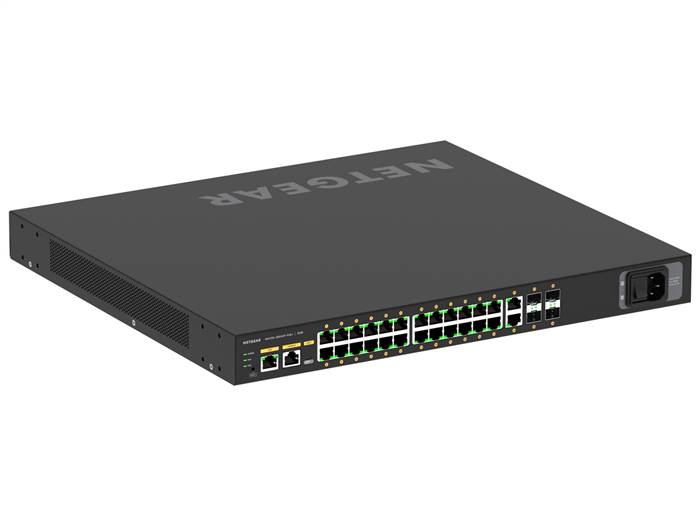

The Netgear GSM4230PX-100NAS is a 24-port, fully managed network switch designed for 1G AV over IP applications, featuring 24 rear-facing Gigabit PoE+ ports with a 480W budget, two 1G RJ45 ports, and four 10G SFP+ uplink slots. It offers features like AVB support, enhanced IGMP, and a switching capacity of 132 Gb/s.

Key specifications

• Primary Ports: 24 x 1 Gigabit PoE+ RJ45
• PoE Budget: 480W (up to 30W per port)
• Additional Ports: 2 x 1 Gigabit RJ45
• Uplink Ports: 4 x SFP+ (10 Gigabit)
• Switching Capacity: 132 Gb/s
• Forwarding Rate: 44.64 Mpps
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• AVB Support: Yes
• Jumbo Frame Support: Yes, up to 12kb
• Mounting: 1RU rackmountable with rear-facing ports standard

Compatible Transceivers

The Netgear GSM4230PX-100NAS switch is compatible with a range of SFP+ transceivers for its four 10G SFP+ uplink slots.
