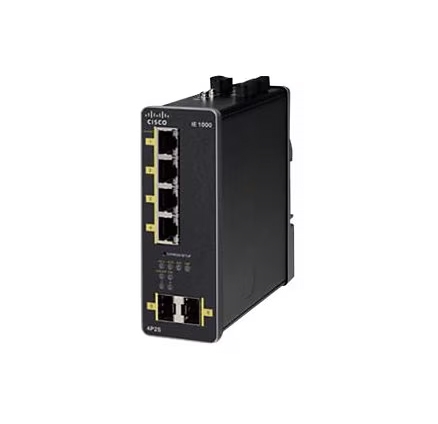

The Cisco IE-1000-4P2S-LM is a compact, lightly managed industrial Ethernet switch with 4 x 10/100/1000 (Gigabit) PoE+ ports, 2 x 1 Gigabit SFP uplink ports, and a total switching capacity of 5.6 Gbps. It features a user-friendly GUI-based interface for management, 160 MB flash memory, 128 MB RAM, and is designed for reliability in harsh industrial environments.

Key Specifications

• Ports: 4 x Fast Ethernet PoE+ RJ45, 2 x Gigabit Ethernet SFP.
• Switching Capacity: 5.6 Gbps.
• Forwarding Rate: 2.8 Gbps.
• Memory: 128 MB DDR2 (without ECC), 160 MB onboard flash.
• PoE Budget: Up to 120W, depending on the model.
• Power Input: 48-54V DC.
• Management: Lightly managed, GUI-based Layer 2 switch.
• Mounting: DIN-rail mountable.
• Environmental: Designed for industrial use with a wide operating temperature range.

Key Features

• Industrial Reliability: Built to withstand harsh industrial environments.
• Easy Configuration: Features a user-friendly web-based device manager for simplified setup.
• PoE Capability: The 4 copper ports support Power over Ethernet (PoE+) to power connected devices.
• Gigabit Uplinks: Provides flexible, high-speed fiber connections for network expansion.
• Advanced Features: Includes features like Spanning-Tree Protocol (STP), Link Layer Discovery Protocol (LLDP), and support for industrial protocols like EtherNet/IP (CIP).

Compatible Transceivers

The IE-1000-4P2S-LM uses Gigabit Ethernet SFP (Small Form-factor Pluggable) transceivers in its two SFP slots.
