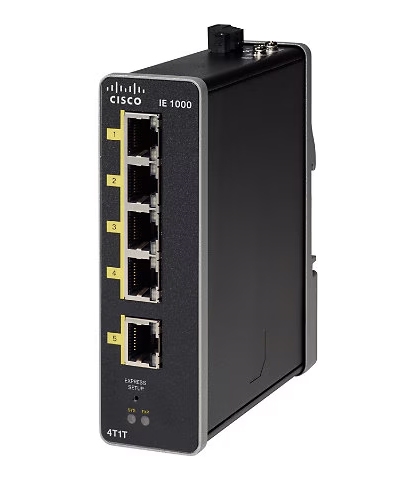

The Cisco IE-1000-4T1T-LM is a ruggedized, lightly managed industrial Ethernet switch with five Fast Ethernet (10/100 Mbps) RJ45 ports, one of which serves as a Gigabit copper uplink, and is powered by a 12-24VDC input. It features a web-based GUI for simplified management and supports industrial standards for shock and vibration, operating temperatures from -40°C to 75°C, and ruggedness for factory floors and outdoor spaces. Key specifications include 128MB of DRAM and 160MB of flash memory, a DIN rail-mountable form factor, and features like Port Security and IGMP snooping for network control.

Key Features & Specifications

• Port Configuration: 5 x 10/100 Mbps Fast Ethernet ports
• 4 x Fast Ethernet copper downlink ports
• 1 x 10/100 Mbps copper uplink port
• Management: GUI-based, lightly managed Layer 2 switch
• Memory:
• 128 MB DDR2 DRAM
• 160 MB onboard flash memory
• Input Power: 12-24 VDC
• Environmental:
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• IP30 rated for protection against solid objects
• Resistant to shock and vibration
• Form Factor: Compact and DIN rail-mountable
• Supported Protocols: IEEE 802.1Q (VLANs), IGMP snooping, LLDP, Spanning Tree Protocol (STP)
• Industrial Certifications: Meets various industrial environmental and safety certifications, including for hazardous locations like Class1, Div2
• Power Consumption: 4.2W
