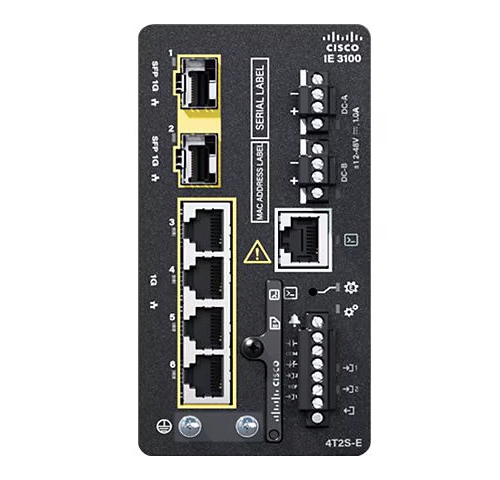

The Cisco Catalyst IE-3100-4T2S-E is a rugged, DIN-rail-mountable industrial network switch featuring 4 x 10/100/1000Base-T (Gigabit Ethernet) RJ-45 ports and 2 x 1 Gigabit Ethernet SFP uplink ports. It is a managed, Layer 3 switch with advanced features like Quality of Service (QoS), industrial protocol support (Profinet, CIP), and certifications for harsh environments, operating in temperatures from -40 to +75°C.

Key Specifications

• Device Type: Managed industrial network switch.
• Ports:
• 4 x 10/100/1000Base-T RJ-45 copper ports.
• 2 x 1 Gigabit Ethernet (1GE) SFP uplink ports.
• Form Factor: DIN Rail Mountable.
• Layer: Layer 3.
• Manageability: Yes, supports Cisco network management tools.
• Environmental:
• Designed for harsh environments with high temperature tolerance, dust, shock, and vibration protection.
• Operating Temperature: -40 to +75°C.
• Power: Dual-input DC power inputs and surge protection.
• Memory: 4 GB of RAM.
• Expansion: 1 SD memory card expansion slot.
• Protocols: Supports Industrial protocols like Profinet, CIP, Modbus TCP, and monitoring standards like IEC61850 and IEC 62443.

Key Features

• High-Speed Connectivity: All ports support Gigabit Ethernet speeds.
• Rugged Design: Built for industrial environments with enhanced durability and environmental compliance.
• Fanless Operation: The fanless design ensures silent operation.
• Industrial Automation: Integrates with industrial protocols and monitoring systems.
• Advanced Security: Includes features like Access Control Lists (ACLs), encryption, DHCP Snooping, and port security.
• Redundant Power: Features dual, redundant DC power input for increased reliability.

Compatible Transceivers

The IE-3100-4T2S-E has two Gigabit Ethernet SFP uplink ports that support both 1 Gb SFP and 100 Mb SFP modules.
