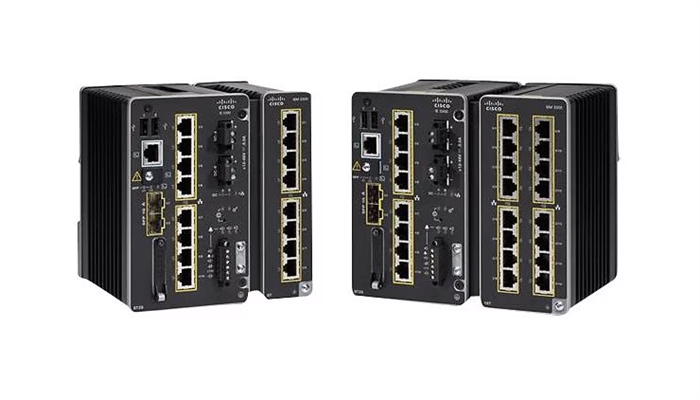

The Cisco IE-3300-8P2S-E is a Cisco Catalyst IE3300 Rugged Series industrial switch with 8 Gigabit PoE+ ports and 2 Gigabit SFP ports, offering a total of 10 ports. Key specifications include a 360W PoE budget (with an expansion module), support for dual DC power inputs, and a wide operating temperature range of -40°C to 75°C. It features various management interfaces, including an RS-232 console port and a Mini USB port, and supports network essential features such as IGMP, STP, and VLANs.

Key Features

• PoE+: 8 x 1 Gigabit Ethernet (PoE+) ports for powering connected devices.
• SFP Ports: 2 x 1 Gigabit Ethernet SFP ports for uplink.
• PoE Budget: 360W (including expansion module), allowing it to power multiple devices simultaneously.
• Rugged Design: Built for industrial environments with a broad operating temperature range of -40°C to 75°C.
• DIN Rail Mountable: Designed for easy installation in industrial control cabinets.
• Removable Storage: Supports SD cards for configuration backup and other functions.

Management and Ports

• Total Ports: 10.
• Console Ports: 1 x RS-232 (RJ-45) and 1 x USB Mini Type B.
• Alarms: 2 alarm inputs and 1 alarm output for monitoring.

Memory and Storage

• DRAM: 2 GB.
• Flash Memory: 1.5 GB (user accessible).
• SD Card: 4 GB capacity.

Network Features

• Forwarding Rate: Line rate for all ports and all packet sizes.
• VLANs: Supports up to 256 VLANs.
• MAC Address Table: Stores up to 8K unicast MAC addresses.
• IP Routing: Supports 2000 IPv4 and 512 IPv6 indirect routes.

Compatible Transceivers

The IE-3300-8P2S-E has two 1 Gigabit Ethernet (GE) SFP uplink ports, meaning it is compatible with 1 GE SFP transceivers.
