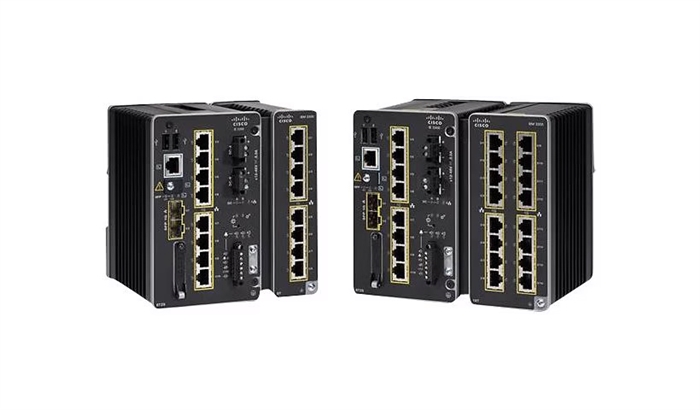

The Cisco Catalyst IE-3300-8T2S-E is
a 10-port, rugged, managed Gigabit Ethernet switch with 8x 1Gb copper
ports and 2x 1Gb SFP slots, featuring an industrial design, support for Network
Essentials software, and ruggedized specifications like a wide operating
temperature range (-40°C to 75°C). It also includes a console port, USB
and SD card slots for storage, alarm inputs and outputs, and supports various
networking features like MSTP, RSTP, and IGMP snooping.
Port Configuration
- Total
Ports: 10
- Copper
Ports: 8 x 10/100/1000 Base-T RJ45 ports
- SFP
Ports: 2 x 100/1000 SFP (mini-GBIC) ports
Memory and Storage
- DRAM: 2
GB
- Flash
Memory: 1.5 GB
- Removable
Storage: SD card slot
Management & Features
- Management
Protocols: SSH, SNMP, Syslog, and more
- Security: DHCP
snooping, IGMP filtering, IP source guard, and more
- Redundancy: Supports
RSTP, MSTP, and REP (Resilient Ethernet Protocol)
Environmental & Physical
- Rugged
Design: Suitable for harsh industrial environments
- Operating
Temperature: -40°C to 75°C (-40°F to 167°F)
- Console
Ports: 1 x serial (RS-232) RJ-45 console, 1 x mini-USB console
port
- Alarms: 2
alarms in, 1 alarm out
Compatible Transceivers
The Cisco IE-3300-8T2S-E is compatible with 100 Mbps and 1 Gbps SFP transceivers. It has two SFP slots that support both fiber and
copper connections, which are not shared with the fixed copper ports.
|
|
|
