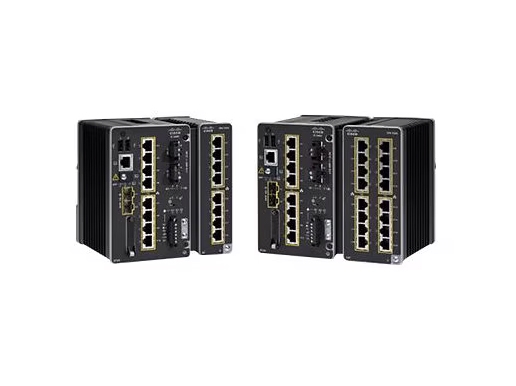

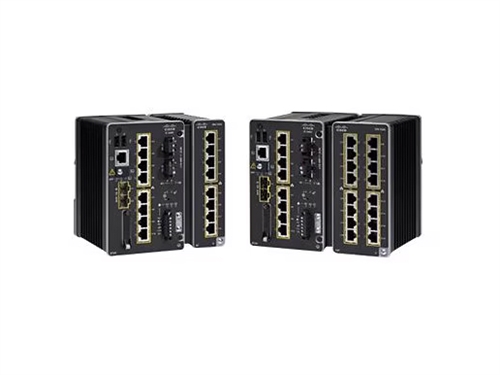

The Cisco IE-3400-8P2S-E is a 10-port industrial Ethernet switch with 8 x 1 Gigabit Ethernet PoE RJ45 ports and 2 x 1 Gigabit Ethernet SFP uplink ports. It features Network Essentials software, 4 GB RAM, 1.5 GB flash memory, dual DC power input, a DIN rail mount option, and runs on the Cisco IOS XE operating system. It is designed for rugged, harsh industrial environments, including the energy, manufacturing, and transportation sectors.

Key Specifications

• Ports: 8 x 1 Gigabit Ethernet PoE RJ45, 2 x 1 Gigabit Ethernet SFP
• PoE Budget: 240W (base); 480W with an expansion module
• RAM: 4 GB
• Flash Memory: 1.5 GB
• Management Ports: 1x RS-232 (RJ-45), 1x USB Mini Type B
• Expansion: 1 SD card reader
• Power: Dual DC power input
• Switching Capacity: Line rate for all ports
• MAC Address Table Size: 8,000 entries
• VLANs: 256
• Software: Cisco Network Essentials
• Operating System: Cisco IOS XE

Design & Features

• Industrial Design: Ruggedized construction with a robust thermal management system for reliable operation in extreme industrial environments.
• Security: Features include a secure boot, image signing, and the Cisco Trust Anchor module.
• Industrial Protocols: Supports industrial protocols like CIP Ethernet/IP, PROFINET, and PTP v2.
• Redundancy: Supports industrial ring protocols such as REP and MRP for network redundancy.
• Management: API-driven configuration with open APIs and data models.

Compatible Transceivers

The Cisco IE-3400-8P2S-E switch is compatible with of SFP transceivers for its fiber uplink ports.
