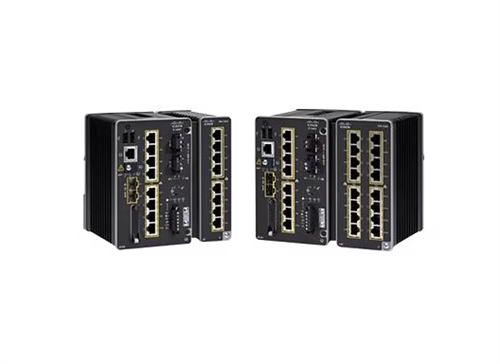

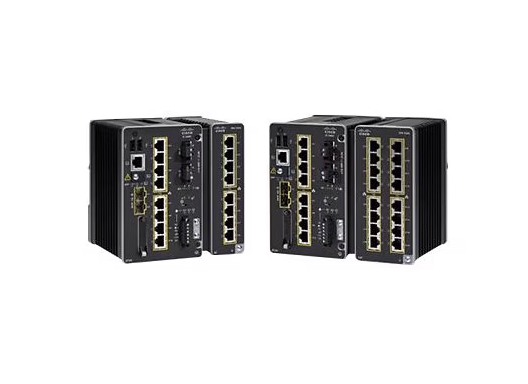

The Cisco IE-3400-8T2S-A is a rugged, Layer 3 industrial Ethernet switch with 8 x 1 Gigabit Ethernet RJ-45 ports and 2 x 1 Gigabit Ethernet SFP uplink ports. It features a modular design expandable to 26 ports, built-in security features, a rugged design for harsh environments, and advanced network management capabilities via Cisco IOS XE and Cisco DNA Center.

Key Hardware Specifications

• Ports: 8 x 1GE RJ-45 copper ports, 2 x 1GE SFP fiber uplink ports.
• Management Ports: 1 x RS-232 console (RJ-45), 1 x USB Mini Type B.
• Removable Storage: SD card reader.
• Power: Dual DC power input for redundancy.
• Internal Memory: 4 GB DRAM, 1.5 GB Flash.
• MAC Address Table: 8,000 unicast entries.
• VLANs: 256.
• Jumbo Frames: 2000 bytes.

Key Software & Features

• Operating System: Cisco IOS XE.
• Layer: Layer 3 switch.
• Security: Built-in security features like secure boot and Cisco Trust anchor module.
• Expansion: Expandable to up to 26 Gigabit Ethernet ports with compatible expansion modules.
• Monitoring: Support for Flexible NetFlow (FNF) for traffic analysis.

Rugged Design

• Environment: Designed for harsh and extreme industrial conditions.
• Temperature: Withstands temperatures from -40°F to 158°F (-40°C to 70°C).
• Mounting: DIN rail mounting.
• IP Rating: IP67-rated for water and dust resistance.
• Fanless: Fanless design for increased reliability.

Compatible Transceivers

The IE-3400-8T2S-A switch has two Small Form-Factor Pluggable (SFP) ports that support a variety 1 Gigabit Ethernet (1G) transceivers.
