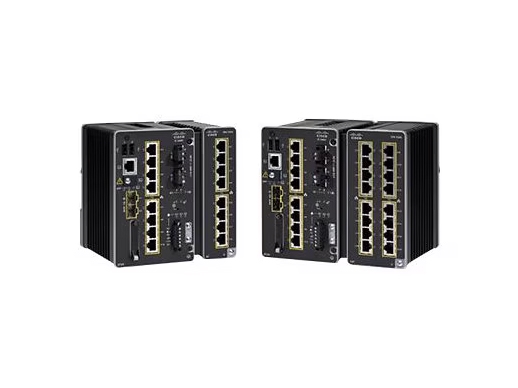

The Cisco IE-3400-8T2S-E is a Cisco Catalyst IE3400 Rugged Series switch with 8x 10/100/1000-Base-T copper ports, 2x Gigabit SFP uplink ports, and support for industrial applications and harsh environments. Key features include Cisco IOS XE, API-driven configuration, enhanced security with secure boot, Flexible NetFlow for traffic analysis, a fanless rugged design for temperature extremes, and support for 480W PoE/PoE+ with an expansion module.

Key Specifications

• Port Configuration: 8 x 1 Gigabit Ethernet (RJ-45) ports and 2 x 1 Gigabit Ethernet SFP uplink ports.
• RAM: 4 GB.
• Flash Memory: 1.5 GB of user-accessible flash.
• Storage: 1 x SD card slot for removable storage.
• Power Input: Dual DC power input for redundancy.
• Power Budget: Supports up to 480W for PoE/PoE+ (requires an expansion module).
• Management: Supports management via WebUI, Cisco DNA Center, Industrial Network Director, and other protocols like SSH and SNMP.
• Operating System: Cisco IOS XE, which includes security features like secure boot and trust anchor.
• Thermal Management: A rugged, fanless design with a heat sink for passive cooling in demanding conditions.

Features & Capabilities

• Industrial Hardening: Designed to withstand harsh environments found in manufacturing, transportation, and smart city applications.
• Security: Features secure boot, image signing, and support for 802.1x, DHCP snooping, and IP source guard.
• Redundancy: Supports redundant power supplies and the Resilient Ethernet Protocol (REP) ring.
• PoE/PoE+ Support: Can power end devices like IP cameras and sensors when the appropriate expansion module is used.
• Monitoring & Analytics: Full Flexible NetFlow (FNF) provides real-time traffic visibility and threat analysis.

Compatible Transceivers

The Cisco IE-3400-8T2S-E switch is compatible with standard SFP (Small Form-Factor Pluggable) transceivers.
