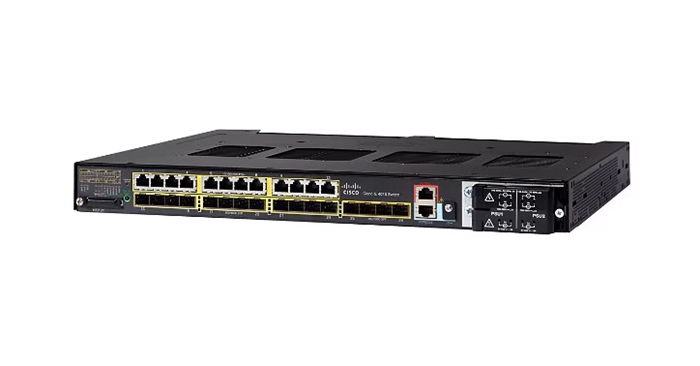

The Cisco IE-4010-16S12P is a 28-port, ruggedized Layer 2/3 industrial Ethernet switch with 12 x 10/100/1000 Mbps PoE+ copper ports, 12 x 1000 Mbps SFP fiber ports, and 4 x 1 Gbps SFP uplink ports. It features a non-blocking switching capacity of 56 Gbps, operates in harsh environments with an extended temperature range, and supports high availability with features like Resilient Ethernet Protocol (REP) and < <0xC2><0xA0>Parallel Redundancy Protocol (PRP).

Key Specifications

• Total Ports: 28 Gigabit Ethernet ports.
• Copper Ports: 12 x 10/100/1000 Mbps PoE/PoE+ ports for in-line power to devices like IP cameras and access points.
• Fiber Ports: 12 x 1000 Mbps SFP (Small Form-Factor Pluggable) fiber ports for high-bandwidth connections.
• Uplink Ports: 4 x 1 Gbps SFP uplink ports.
• Switching Capacity: 56 Gbps.
• Forwarding Bandwidth: 28 Gbps.
• DRAM/Flash: 1 GB RAM and 128 MB flash memory.
• Operating Temperature: -40°C to 75°C (-40°F to 167°F), making it suitable for industrial environments.
• Form Factor: DIN rail mountable.

Features

• Ruggedized Design: Hardened for vibration, shock, surge, and electrical noise immunity.
• PoE/PoE+: High-density Power over Ethernet Plus support for devices requiring power over the network.
• High Availability: Supports advanced features like REP and PRP for network resiliency and reduced downtime.
• Security: Includes features like 802.1X authentication and MACsec encryption for enhanced security.
• Management: Cisco IOS software and tools like Cisco Network Assistant and Cisco Prime interface for ease of management.
• Industrial Protocols: Supports industrial automation protocols like EtherNet/IP and PROFINET. Compatible Transceivers

Compatible Transceivers

The IE-4010-16S12P switch supports standard SFP transceivers, including ruggedized options.
