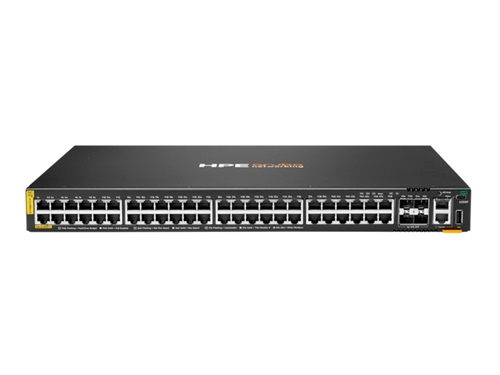

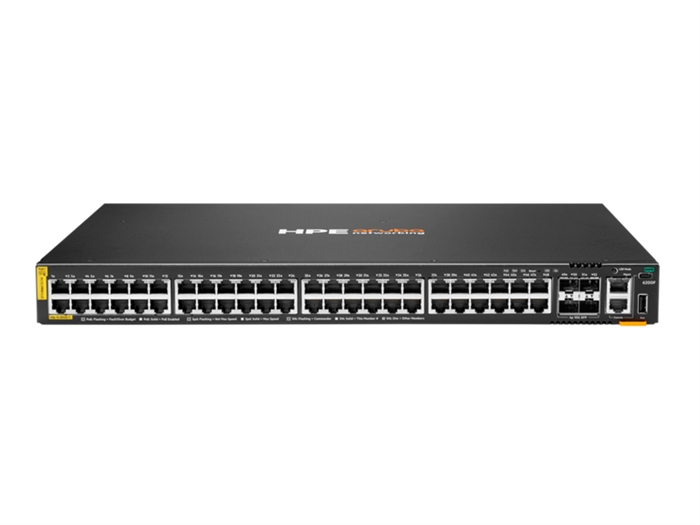

HPE Aruba Networking CX 6200F 48G Class‑4 PoE 4SFP+ 740W Switch.
Differentiator 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1/10G SFP ports; PHY-less
Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x RJ-45 Console Port
Fixed power supply Up to 740W of Class 4 PoE Power
Fixed fans
Power consumption 76W at 230 VAC
Input voltage 100V-120V/200V-240V
Ports 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 100M/1/10G SFP+ ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x RJ-45 Console Port
1x OOBM
1x USB Type-A Host port
Latency 1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec
Routing/switching capacity 176 Gbps
Stacking capabilities 8 members
Throughput Up to 130.9 Mpps
Memory and processor CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC
Power supply name Fixed power supply
Up to 740W of Class 4 PoE Power
PoE capability 740W
Warranty Limited lifetime warranty.
Detailed product description The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Weight 5.10 kg, max, depending on model (11.24 lbs, max, depending on model)
Dimensions 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
