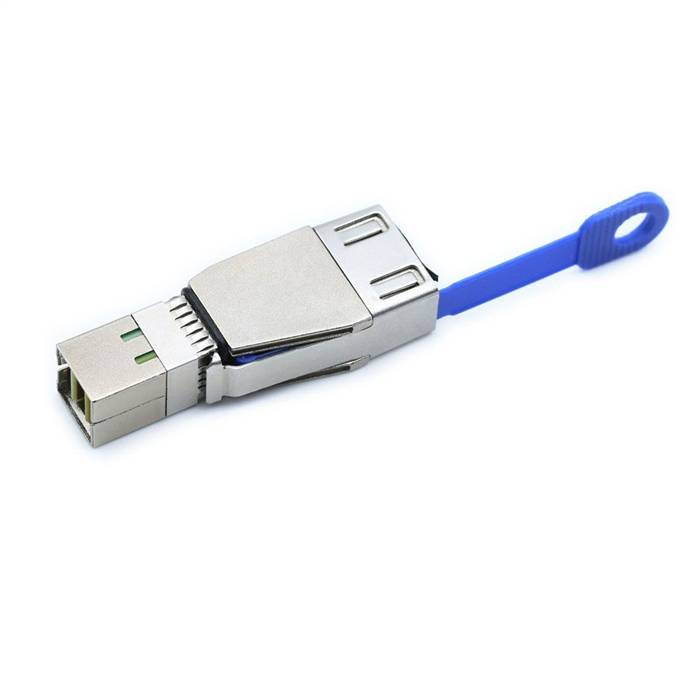

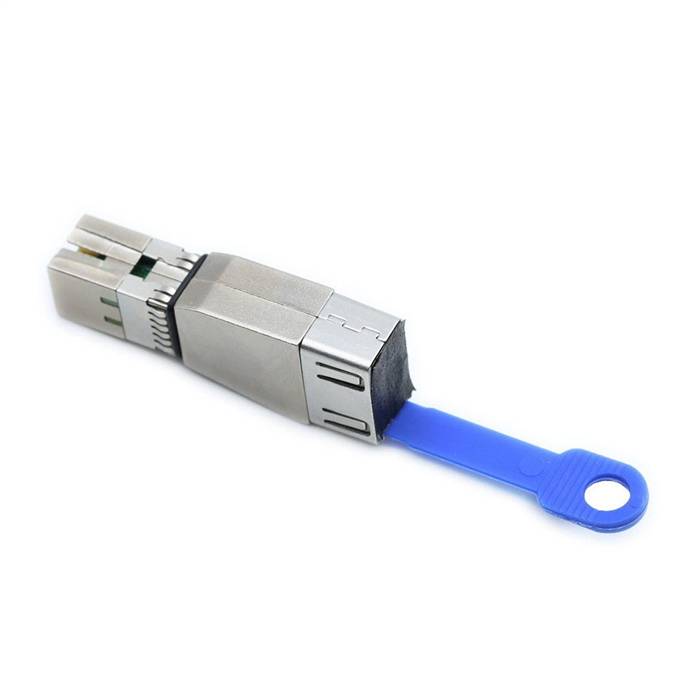

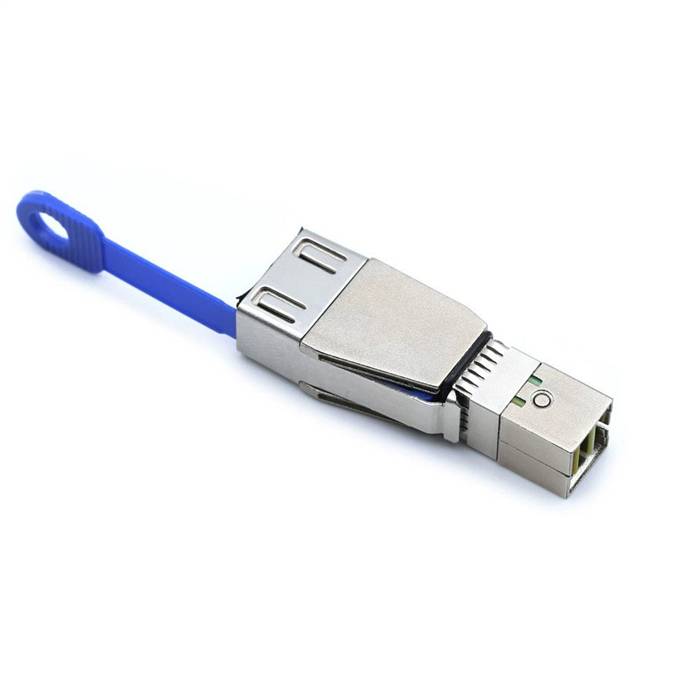

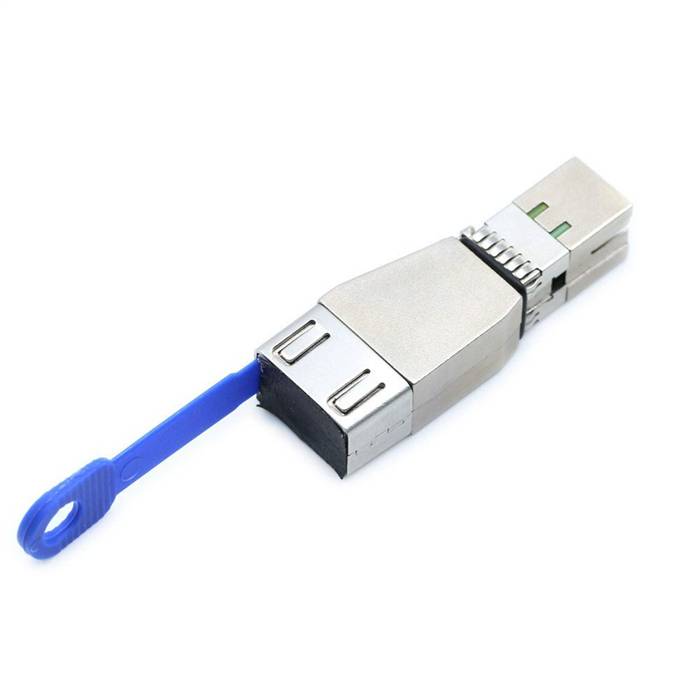

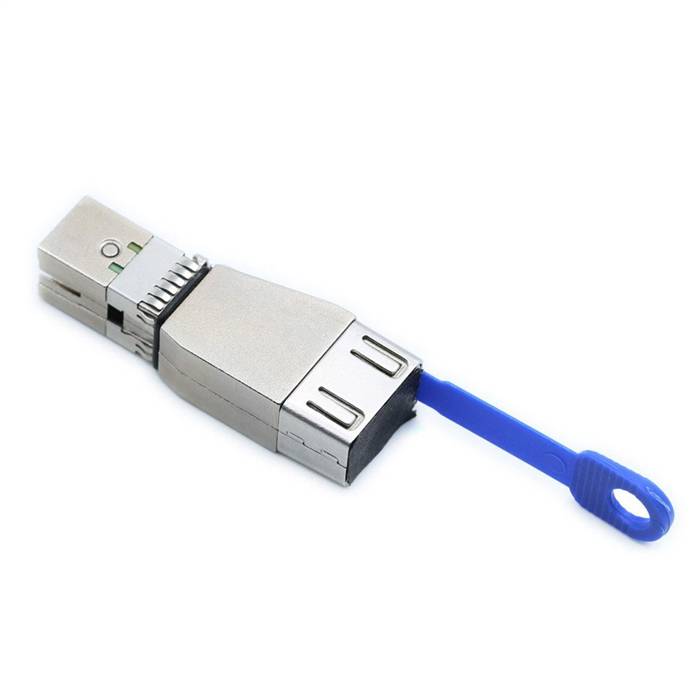

External HD Mini SAS SFF-8644 Loopback

The External HD Mini SAS SFF-8644 Loopback Cable is a precision-engineered diagnostic tool designed for testing, validating, and troubleshooting SAS (Serial Attached SCSI) ports and interfaces in servers, storage systems, and networking equipment. This loopback plug connects directly to an external SFF-8644 HD Mini SAS port, creating a closed signal path that allows the host system to verify port functionality, signal integrity, and data transmission capabilities without requiring external storage devices. Ideal for IT professionals, system integrators, and data center technicians, it simplifies hardware diagnostics, reduces downtime, and ensures reliable performance validation for SAS-based infrastructure.

Features

• Diagnostic Functionality: Enables self-testing of SAS ports by looping transmitted signals back to the receiver (verifying port integrity and functionality);
• High-Speed Compatibility: Supports SAS-3 (12Gb/s) and SAS-2 (6Gb/s) protocols (ensures accurate testing for modern SAS interfaces);
• Robust Construction: Features a metal-shielded SFF-8644 connector with secure latching (provides EMI protection and vibration-resistant mating);
• Plug-and-Play Operation: Requires no external power or software (simplifies deployment and reduces diagnostic complexity);
• Precision Engineering: Optimized impedance matching (100? ±10%) ensures signal integrity during testing;
• Durable Design: Built to withstand repeated mating cycles (up to 5,000 insertions) for long-term reliability;
• Portable Solution: Compact form factor facilitates easy storage and on-site troubleshooting.

Specifications

• Product Model: External HD Mini SAS SFF-8644 Loopback Plug;
• Connector: External HD Mini SAS SFF-8644 (36-position, Male, Metal Shell);
• Compatible Ports: SFF-8644 External SAS HD Interfaces;
• Supported Protocols: SAS-3 (12Gb/s), SAS-2 (6Gb/s);
• Impedance: 100? ±10%;
• Signal Loopback: Transmits and receives signals on all 4 lanes (comprehensive port testing);
• Operating Temperature: -20°C to +85°C;
• Durability Rating: 5,000 mating cycles;
• EMI Shielding: Full metal shell provides 360° electromagnetic interference protection;
• Compliance: Meets SFF-8644 industry standards and RoHS/REACH environmental requirements.

Applications

• Data Center Maintenance: Rapid diagnostics of SAS HBAs (Host Bus Adapters) and RAID controllers;
• Server Manufacturing: Quality assurance testing during production and assembly;
• Field Service Troubleshooting: Isolating port failures in servers and storage arrays;
• Network Validation: Verifying SAS switch ports and external storage connectivity;
• Lab and Development Environments: Prototyping and validating SAS interface functionality;
• Pre-Deployment Checks: Ensuring port reliability before system installation;
• Hardware Upgrade Verification: Testing ports after hardware modifications or expansions;
• RMA Testing: Confirming port failures before component replacement.

Usage Notes

• - Insert the loopback plug firmly into the target SFF-8644 port until the latch engages;
• - Run diagnostic software (e.g., vendor-specific HBA utilities or SAS protocol analyzers) to initiate tests;
• - Monitor for error flags, signal quality metrics, and successful data loopback confirmation;
• - Remove after testing; not intended for permanent installation.

This tool is essential for maintaining high availability and performance in SAS-based storage ecosystems.
