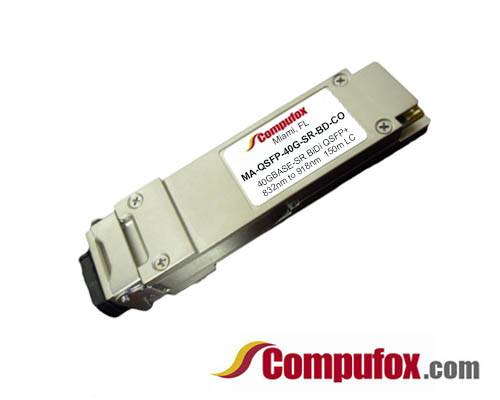

MA-QSFP-40G-SR-BD | Cisco Meraki Compatible QSFP+ Transceiver
MA-QSFP-40G-SR-BD | Cisco Meraki Compatible QSFP+ Transceiver

Our Price: $245.00

Warranty: 1 Year Warranty


Product Code: MA-QSFP-40G-SR-BD-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40GBASE-SR Bi-Directional Duplex QSFP+ Optical Transceiver Module (MMF, 832nm - 918nm, 150m, LC).

Specifications:
Form Factor QSFP+ Max Data Rate 40Gbps
Wavelength 832nm-918nm Max Cable Distance 150m@OM4 / 100m@OM3 / 30m@OM2
Connector LC duplex Media Type MMF
Transmitter Type VCSEL 850/900nm Receiver Type PIN
TX Power -4~5dBm Receiver Sensitivity <-6dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols 40G Ethernet, IEEE802.3ba-2010, MSA Compliant

Responsive Video

Compatible Switches and Routers:

  • Cisco Meraki MS355 Series (MS355-24X2-HW)
  • Cisco Meraki MS355 Series (MS355-24X-HW)
  • Cisco Meraki MS355 Series (MS355-48X2-HW)
  • Cisco Meraki MS355 Series (MS355-48X-HW)
  • Cisco Meraki MS390 Series (MA-MOD-2x40G)
  • Cisco Meraki MS425 Series (MS425-16-HW)
  • Cisco Meraki MS425 Series (MS425-32-HW)
  • Cisco Meraki MS450 Series (MS450-12-HW)
  • Cisco Meraki MS450 Series (MS450-HW)
