The MPE-GE-1T-8111 Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Features

• Support existing CAT-5 UTP cabling with automatic crossover detection
• Fully compliant with PCI-Express Base Specification Revision1.1
• Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps
• Compatible with PCI-E MINI Card Electromechanical specification revision1.2
• Compatible with Full/Half size MINI card type form factor
• Fully Plug and Play compatible
• A high performance 1000BASE-T Ethernet controller card
• Backwards compatible to 10/100BASE-T networking
• 10/100/1000Mbps data rate auto negotiation operation
• Fully compliant with IEEE802.3, 802.3 u, and 802.3ab
• Support full duplex flow control(IEEE802.3x)
• Support IEEE802.1P Layer 2 Priority Encoding
• Support IEEE802.Q VLAN tagging
• Support jumbo frame to 9K bytes
• Crossover Detection and Auto Correction operation

Specifications

• Chipset: Realtek RTL8111F
• Bus Type: mini PCIe Rev1.1 2.5GT/s
• Connector: 1 * RJ45
• Transmission Rate: 10/100/1000Mbps
• Cabling
  • 1000Base-T Cat 5E, Cat6 or higher: up to 100m
  • 100Base-Tx Cat5, Cat5E, Cat6 or higher: up to 100m
  • 10Base-T Category 3, 4, 5, 5E, 6 or higher: up to 100m
• IEEE Standard / Network topology
  • 1000BASE-T Gigabit Ethernet, IEEE 802.3az - Energy Efficient Ethernet (EEE)
  • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588
• System Requirements
  • Windows XP / ME / Server 2000 / Server 2003 / Server 2008 /
  • Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
  • Applications: Home or Office use

Hardware

• Certifications: FCC, CE, RoHS
• Metal Bracket: Full-height and Low-profilebracket
• LED Indicators: Link/Activity LED: Green + Orange

Environmental

• Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
• Storage Temperature : -40 ~ 70 ℃ (-40 ~ 158 ℉)
• Storage Humidity: 90% Non-condensing relative humidity at 35 ℃

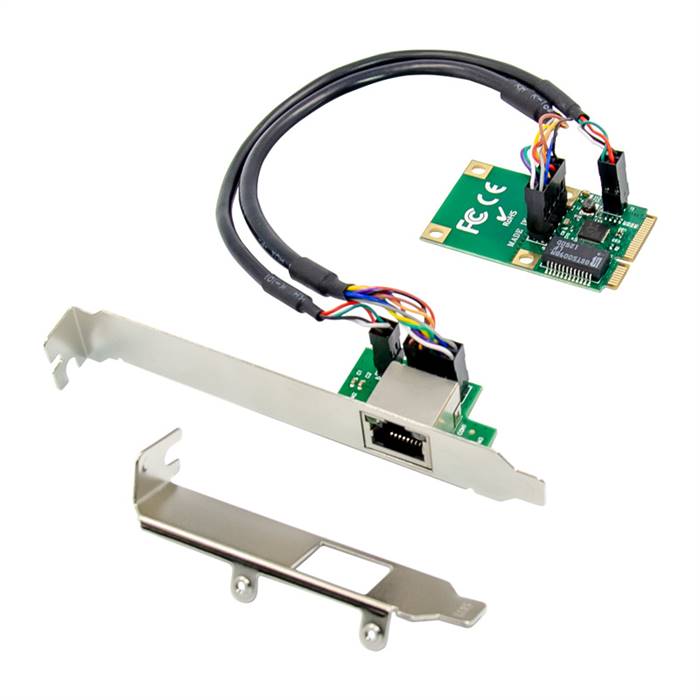

Package Contents

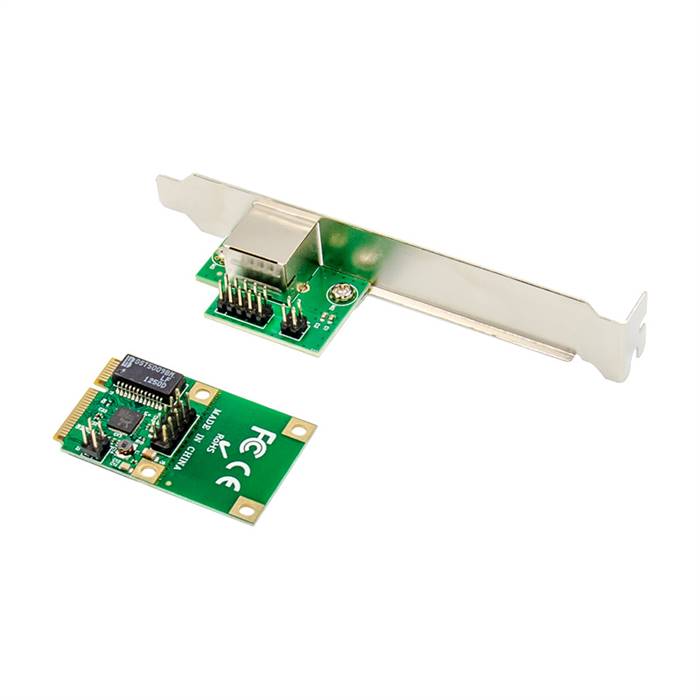

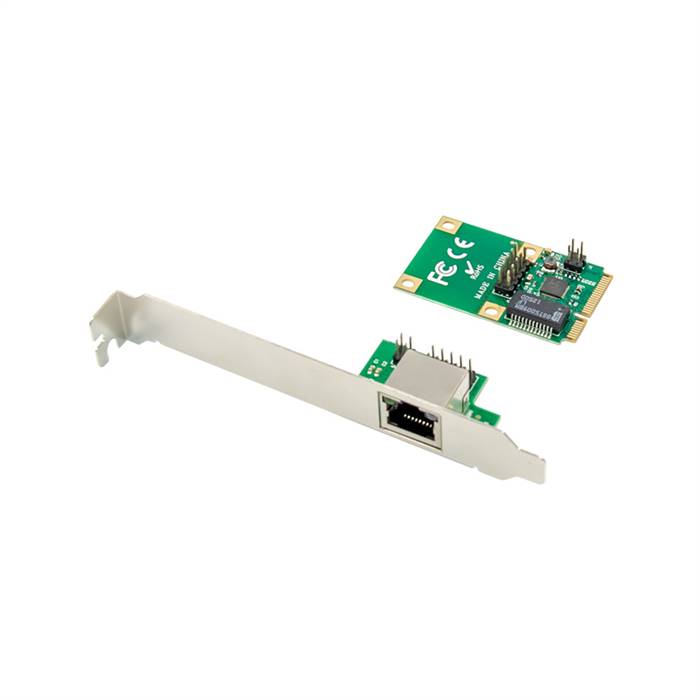

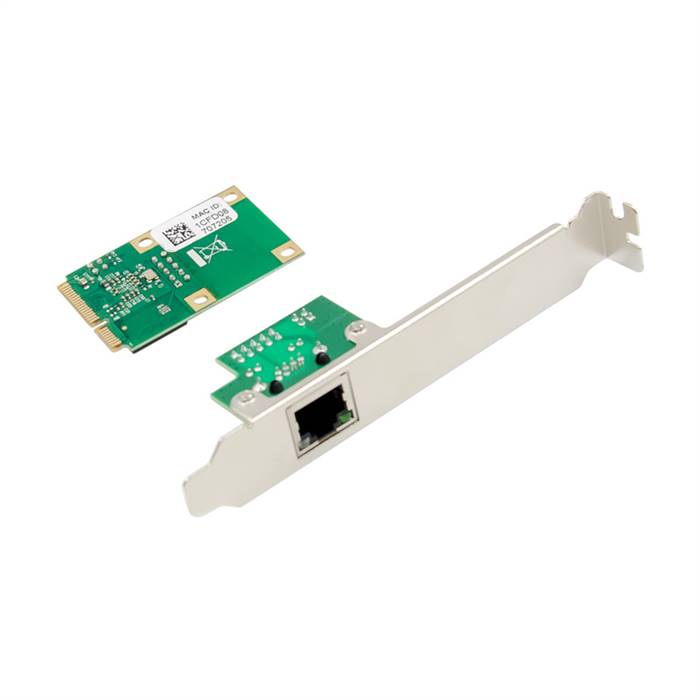

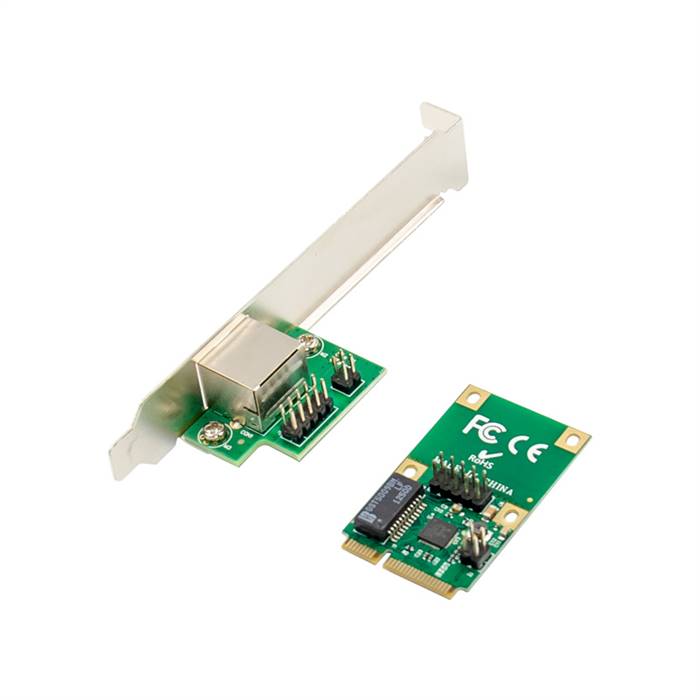

• 1 * Mini PCIe RTL8111F Gigabit network adapter-main card
• 1 * Mini PCIe RTL8111F Gigabit network adapter -daughter card
• 1 * 10-Pin network cable
• 1 * 4-Pin LED cable
• 1 * User Manual
• 1 * Drive CD
• 1 * Low Profile Bracket
