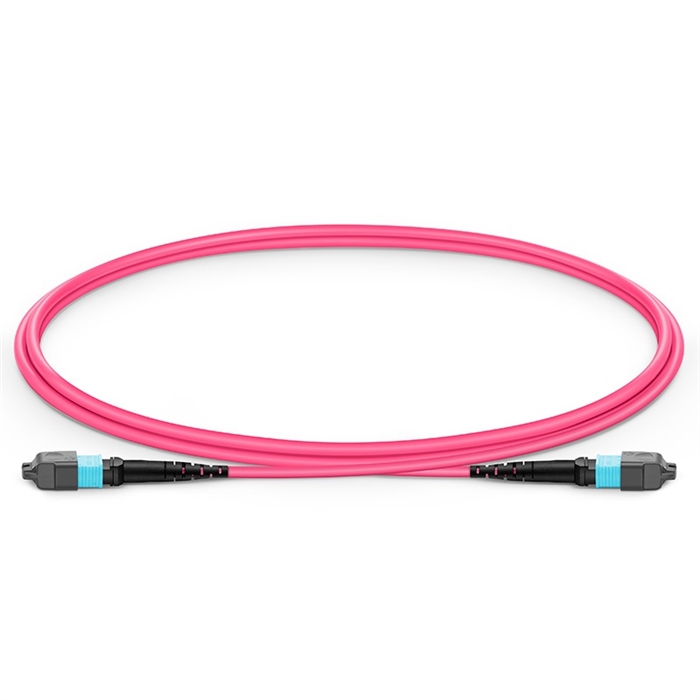

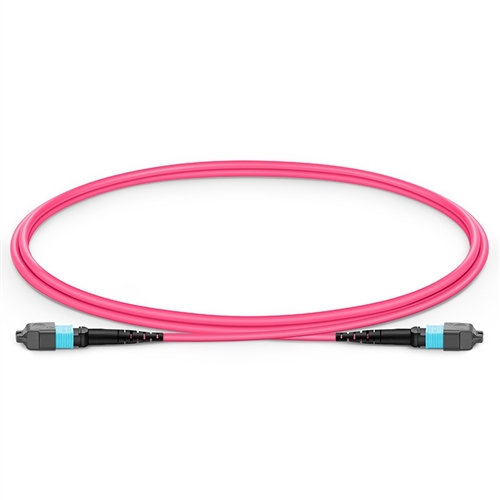

Multimode MPO-16 (Female) To MPO-16 (Male) Trunk Cable (16 Fiber, 50/125 OM4, LSZH)
Multimode MPO-16 (Female) To MPO-16 (Male) Trunk Cable (16 Fiber, 50/125 OM4, LSZH)

Our Price: $49.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: MPO16-OM4-FM


Select MPO Polarity*: 		Method A: Straight Cable
Method B: Crossover Cable
Method C: Pairwise Flip Cable

Select Length*:

Qty:
Description

Multimode MPO-16 (Female) To MPO-16 (Male) Trunk Cable (16 Fiber, 50/125 OM4, LSZH).

Specifications

  • Fiber Type: 50/125µm Multimode OM4
  • Connector Type: MPO Female to MPO Male
  • Insertion Loss: Standard: =0.6dB (0.40dB Typ.) - Elite: MPO=0.35dB (0.15dB Typ.)
  • Polarity: Select Type A, B or C
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Environment: Operating: -20°C to 70°C - Storage: -40°C to 85°C
  • Fiber Count: 16-Fiber
  • Polish: UPC to UPC
  • Cable Diameter: 3.0mm
  • Return Loss: =20dB
  • Durability: =100 times
  • Jacket Color: Magenta
  • Attenuation: 850nm: =3.0dB/km - 1310nm: =1.0dB/km


Understanding Polarity in MTP/MPO Cables

MTP® Trunk Cable Type A: Type A cable, also known as straight cable, is a straight-through cable with a key-up MTP® connector on one end and a key-down MTP® connector on the opposite end. This makes the fibers at each end of the cable have the same fiber position. For example, the fiber located at position 1 (P1) of the connector on one side will arrive at P1 at the other connector. The fiber sequence of a 12 fiber Type A MTP® cable is shown below:

MTP® Trunk Cable Polarity Type A

MTP® Trunk Cable Type B: Type B cable (reversed cable) uses key-up connectors on both ends. This type of array mating results in an inversion, which means the fiber positions are reversed at each end. The fiber at P1 at one end is mated with the fiber at P12 at the opposing end. The following picture shows the fiber sequences of a 12 fiber Type B cable.

MTP® Trunk Cable Polarity Type B

MTP® Trunk Cable Type C: Type C cable (pairs flipped cable) looks like Type A cable with one key-up connector and one key-down connector on each side. However, in Type C each adjacent pair of fibers at one end are flipped at the other end. For example, the fiber at position 1 at one end is shifted to position 2 at the other end of the cable. The fiber at position 2 at one end is shifted to position 1 at the opposite end etc. The fiber sequence of MTP®-12 Type C cable is demonstrated in the following picture.

MTP® Trunk Cable Polarity Type C
