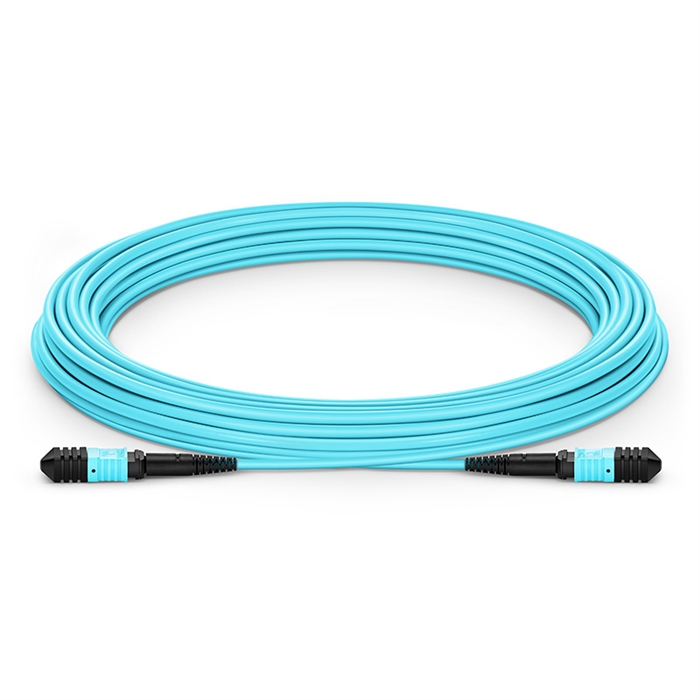

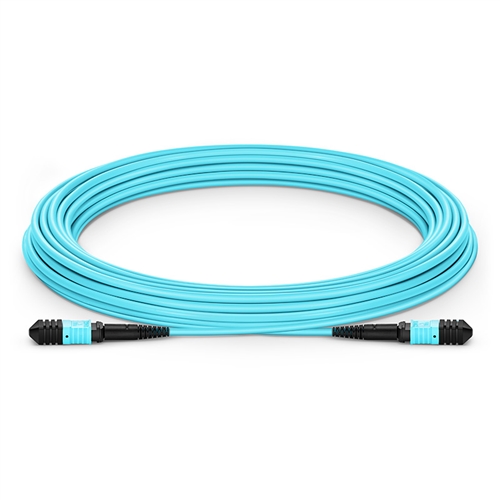

Home > Fiber Optic Cables > MTP/MPO Fiber Cables > Multimode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 50/125 OM3,Type B, LSZH, Aqua)
Alternative Views:	Our Price: $49.00 Warranty: 1 Year Warranty Availability: In Stock Leadtime: Usually ships in 2 days Product Code: MPO24-OM3 Select Length*: 1m (3ft) 2m (7ft) [Add $5.00] 3m (10ft) [Add $7.50] 5m (16ft) [Add $12.50] 7m (23ft) [Add $17.50] 10m (33ft) [Add $25.00] 15m (49ft) [Add $37.50] 20m (66ft) [Add $50.00] 30m (98ft) [Add $75.00] 40m (131ft) [Add $100.00] 50m (164ft) [Add $125.00] 70m (230ft) [Add $175.00] 80m (262ft) [Add $200.00] 100m (328ft) [Add $250.00] Qty:

Description   Multimode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 50/125 OM3,Type B, LSZH, Aqua). Specifications Fiber Type: 50/125µm Multimode OM3 Connector Type: MPO Female to MPO Female Insertion Loss: Standard: ≤0.6dB (0.40dB Typ.) - Elite: MPO≤0.35dB (0.15dB Typ.) Polarity: Type B (Crossover) Jacket Material: LSZH (Low Smoke Zero Halogen) Environment: Operating: -20°C to 70°C - Storage: -40°C to 85°C Fiber Count: 24-Fiber Polish: UPC to UPC Cable Diameter: 3.0mm Return Loss: ≥20dB Durability: ≥100 times Jacket Color: Aqua Attenuation: 850nm: ≤3.0dB/km - 1310nm: ≤1.0dB/km
