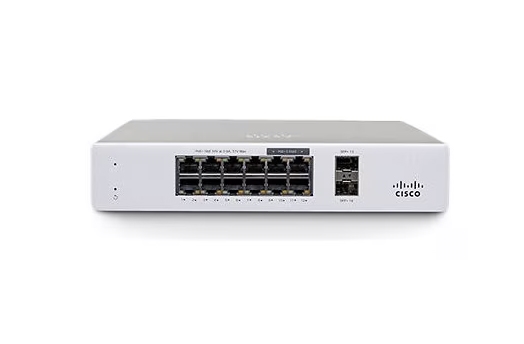

The Cisco Meraki MS130-12X-HW is a cloud-managed, fanless, 12-port mGig access switch with 8 Gigabit Ethernet PoE/PoE+ ports, 4x 2.5 Gigabit mGig PoE/PoE+ ports, and 2x 10 Gigabit SFP+ uplink ports. It features a 240W PoE budget and a switching capacity of 76 Gbps, making it suitable for low- to medium-density Wi-Fi 6/6E deployments.
Cisco Meraki MS130-12X — Specifications (Card)
Cisco Meraki MS130-12X — Specifications
Primary Information
- Product Description
- Cisco Meraki MS130-12X - switch - 12 ports - managed
- Device Type
- Switch - 12 ports - managed
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000Base-T + 2 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Switching capacity: 76 Gbps
- Remote Management Protocol
- SNMP, Syslog, IPv4, IPv6, DHCP
- Features
- Remote firmware upgrade, DHCP snooping, DHCP relay, 802.1x authentication, ZTP, QoS, non-blocking architecture, cloud managed, fanless
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Power
- DC 54 V 5.56 A
- Dimensions (W×D×H)
- 9.1 in × 9.1 in × 1.7 in
- Weight
- 2.34 lbs
- Manufacturer Warranty
- Limited lifetime warranty
General
- Device Type
- Switch - 12 ports - managed
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000Base-T + 2 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Switching capacity: 76 Gbps
- Remote Management Protocol
- SNMP, Syslog, IPv4, IPv6, DHCP
- Features
- Remote firmware upgrade, DHCP snooping, DHCP relay, 802.1x authentication, ZTP, QoS, non-blocking architecture, cloud managed, fanless
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Status Indicators
- Power, link/activity, status
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ ¦ 4 x 2.5GBase-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink
Power
- Power Device
- External power adapter
- Voltage Required
- DC 54 V
- Electric Current Required
- 5.56 A
- Power Consumption (Standby)
- 19 Watt
Dimensions & Weight
- Width
- 9.1 in
- Depth
- 9.1 in
- Height
- 1.7 in
- Weight
- 2.34 lbs
Manufacturer Warranty
- Service & Support
- Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year
Environmental Parameters
- Min Operating Temperature
- 32 °F
- Max Operating Temperature
- 113 °F
- Humidity Range Operating
- 5 - 95%
- Min Storage Temperature
- -4 °F
- Max Storage Temperature
- 158 °F
|
|
|
 |
|
 |
|
