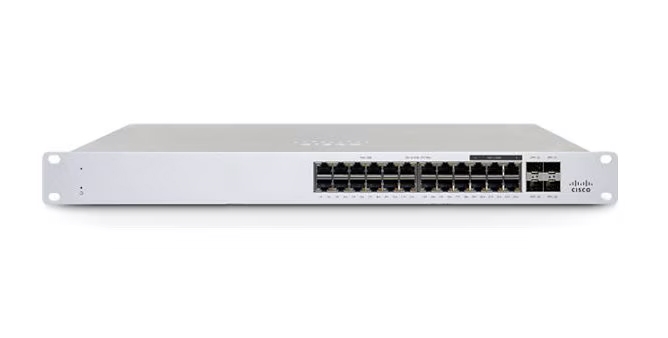

Cisco Meraki MS130-24P - switch - 24 ports - managed - rack-mountable
Cisco Meraki MS130-24P - switch

Our Price: $1,645.00
Availability: CALL


Product Code: MS130-24P-HW
Qty:

Description

The Cisco Meraki MS130-24P-HW is a 24-port Gigabit Ethernet switch with 370W of PoE+ (Power over Ethernet Plus) budget, 4 x 1-Gigabit SFP uplinks, a non-blocking architecture, and cloud-based management via the Meraki Dashboard. Key features include 802.1X authentication, DHCP snooping, QoS, remote firmware upgrades, and built-in security features, supporting Layer 2 switching. It is a rack-mountable device with internal power supply and dimensions of 1.73 x 17.32 x 10 inches.

Cisco Meraki MS130-24P-HW — Specifications (Card)

Cisco Meraki MS130-24P-HW — Specifications

Primary Information

Network Device Type
Switch
Model
MS130-24P-HW
Form Factor
1U
Connectivity Technology
Wired
Data Transfer Rate
1 Gbps
Data Link Protocol
Gigabit Ethernet
Status Indicators
LED indicators
Processor / Type
None
Networking Compliant Standards
802.1Q, 802.1X
Media Layer Supported
Layer 2
Power / Device Type
Power Supply
Max Power Consumption
406 W
Power / Voltage Required
100–240 V, 50–60 Hz
MTBF
768,152 hours
Features
Managed via Cisco Meraki Dashboard Remote Packet Capture Tools via Meraki Dashboard Automatic Firmware upgrades SNMP/Syslog Integration

Network

Power Over Ethernet (PoE) Support
Y
PoE Power Consumption
370 W
Remote Management Protocol
DHCP; Syslog; IPv4; IPv6; SNMP
10/100/1000BASE‑T Ports
24
SFP Ports
4
Interfaces
RJ45; SFP; Dedicated Mgmt

Interfaces / Ports

Interfaces
RJ45; SFP; Dedicated Mgmt
10/100/1000BASE‑T Ports
24
SFP Ports
4

Dimensions & Miscellaneous

Width
17.32 in
Depth
10 in
Height
1.73 in
Weight
8.9 lbs

Special Feature

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
