Home > Switches > Ethernet Switches > Cisco Meraki >

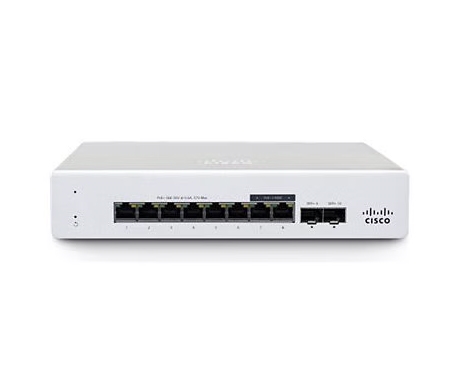

Cisco Meraki MS130-8P - switch - 8 ports - managed
Cisco Meraki MS130-8P - switch

Our Price: $695.00
Availability: CALL


Product Code: MS130-8P-HW
Qty:

Description

The Cisco Meraki MS130-8P-HW is an 8-port, cloud-managed, fanless, Layer 2 access switch with 120W PoE+, 2 Gigabit SFP uplink ports, and a 20 Gbps switching capacity. Key features include cloud management for remote monitoring and upgrades, support for 802.1Q VLAN tagging, DHCP snooping, and 802.1X authentication, and it has a compact, desktop or wall-mountable form factor.

Cisco Meraki MS130-8P — Specifications (Card)

Cisco Meraki MS130-8P — Specifications

Primary Information

Product Description
Cisco Meraki MS130-8P - switch - 8 ports - managed
Device Type
Switch - 8 ports - managed
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000Base-T + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps
Remote Management Protocol
SNMP, Syslog, IPv4, IPv6, DHCP
Features
Remote firmware upgrade, DHCP snooping, DHCP relay, 802.1x authentication, ZTP, QoS, non-blocking architecture, cloud managed, fanless
Compliant Standards
IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Power
DC 54 V 2.78 A
Dimensions (W×D×H)
8.7 in × 5.9 in × 1.1 in
Weight
1.94 lbs
Manufacturer Warranty
Limited lifetime warranty

General

Device Type
Switch - 8 ports - managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000Base-T + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps
Status Indicators
Power, link/activity, status

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP

Power

Power Device
External power adapter
Voltage Required
DC 54 V
Electric Current Required
2.78 A
Power Consumption (Standby)
8 Watt

Dimensions & Weight

Width
8.7 in
Depth
5.9 in
Height
1.1 in
Weight
1.94 lbs

Manufacturer Warranty

Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year

Environmental Parameters

Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
