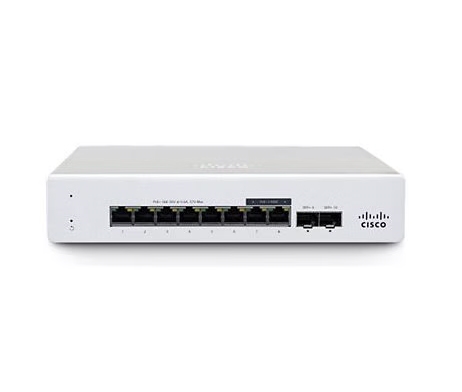

Cisco Meraki MS130-8P-I - switch - 8 ports - managed
Cisco Meraki MS130-8P-I - switch

Our Price: $695.00
Availability: CALL


Product Code: MS130-8P-I-HW
Qty:

Description

The Meraki MS130-8P-I-HW is an 8-port, managed Layer 2 access switch with a 120W total PoE budget, featuring two 1Gb SFP ports for uplinks and an internal power supply for fanless operation. Key specs include a 20 Gbps switching capacity, <4 µs latency, and support for 802.1X authentication. It supports an operating temperature of 0-45°C and has integrated wall/desk mounting brackets.

Cisco Meraki MS130-8P-I — Specifications (Card)

Cisco Meraki MS130-8P-I — Specifications

Primary Information

Product Description
Cisco Meraki MS130-8P-I - switch - 8 ports - managed
Device Type
Switch - 8 ports - managed
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps
Remote Management Protocol
SNMP, Syslog
Features
Fanless, auto firmware update, ACL support, VLAN Tagging, DHCP snooping, cloud managed
Compliant Standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x
Power
DC 54 V 3.7 A
Dimensions (W×D×H)
9.1 in × 9.1 in × 1.7 in
Weight
2.87 lbs
Manufacturer Warranty
Limited lifetime warranty

General

Device Type
Switch - 8 ports - managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps
Remote Management Protocol
SNMP, Syslog
Features
Fanless, auto firmware update, ACL support, VLAN Tagging, DHCP snooping, cloud managed
Compliant Standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x
Status Indicators
Power, link/activity, status

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP

Power

Power Device
Internal power supply
Voltage Required
DC 54 V
Electric Current Required
3.7 A
Power Consumption (Standby)
8 Watt

Miscellaneous

MTBF
608,122 hours

Dimensions & Weight

Width
9.1 in
Depth
9.1 in
Height
1.7 in
Weight
2.87 lbs

Manufacturer Warranty

Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day

Environmental Parameters

Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
