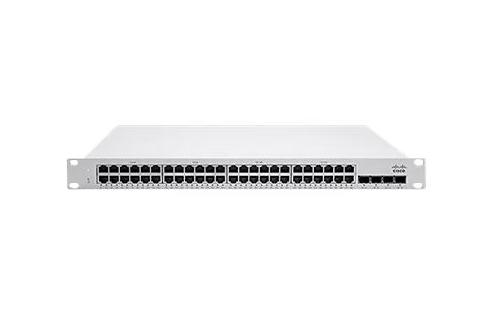

The MS210-48FP-HW is a Cisco Meraki cloud-managed, stackable Layer 2 access switch with 48 x 1 Gbps Ethernet ports, 4 x 1 Gbps SFP uplink ports, and 740W of PoE+ power. It features a non-blocking switching capacity of 176 Gbps, has a 176 mpps forwarding rate, and supports 80 Gbps stacking bandwidth. Key features include cloud management with a GUI dashboard and zero-touch provisioning, plus support for 802.1X authentication and DHCP snooping.

Key Specifications

• Ports:
  • 48 x 10/100/1000BASE-T RJ45 Ethernet ports
  • 4 x 1GbE SFP uplink ports

• Power over Ethernet (PoE+): 740W available PoE+ power
• Switching Capacity: 176 Gbps
• Forwarding Rate: 77.38 million packets per second (mpps)
• Stacking: Integrated dual stacking ports supporting up to 80 Gbps stacking bandwidth
• Management: Meraki cloud-managed platform via web interface, zero-touch provisioning
• Layer 2 Features: VLANs, 802.1X, DHCP snooping, STP
• Physical Dimensions: 1.72 x 19 x 13.38 inches (4.38 x 48.46 x 34cm)
• Weight: 8.78 lb (3.98 kg)

Highlights

• Cloud-Managed: Seamlessly managed through the Meraki cloud, providing a user-friendly dashboard for remote management and monitoring.
• PoE+ Ready: The 740W PoE budget can power access points, phones, and other PoE-enabled devices.
• Stackable Design: Allows for easy logical stacking and expansion of network capacity.
• High Performance: Offers substantial switching capacity and forwarding rates for busy network environments.
• Branch and Campus Focused: Designed as an access switch solution for small to medium-sized branches and campus networks.
