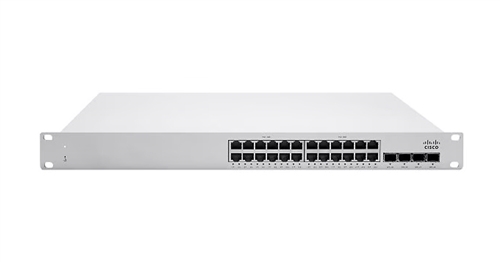

Cisco Meraki Cloud Managed MS225-24P - switch - 24 ports - managed - rack-mountable
Cisco Meraki Cloud Managed MS225-24P - switch

Our Price: $2,875.00
Availability: CALL


Product Code: MS225-24P-HW
Qty:

Description

The Cisco Meraki MS225-24P-HW is a 24-port cloud-managed Gigabit Ethernet access switch featuring 370W of PoE+ power, four 10 Gigabit SFP+ uplink ports, 80Gbps physical stacking capabilities, and a 128Gbps non-blocking switching fabric. It is rack-mountable and designed for branch and campus environments, offering features like Voice and Video QoS, Static Routing, and a lifetime hardware warranty, all managed centrally through the Meraki cloud.

Cisco Meraki MS225-24P-HW — Specifications (Card)

Cisco Meraki MS225-24P-HW — Specifications

Primary Information

Network Device Type
Switch
Model
MS225-24P-HW
Form Factor
1U
Connectivity Technology
Wired
Data Transfer Rate
10 Gbps
Data Link Protocol
10 Gigabit Ethernet
Networking Compliant Standards
802.1X, 802.1q, 802.1p
Media Layer Supported
Layer 2, Layer 3
Power / Device Type
Power Supply
Uplink Port
4 x SFP+ 10GbE uplink
Power / Voltage Required
100 - 240 VAC, 47-63 Hz
MTBF
391,648 hours at 25°C
Features
Branch & Campus Access; Converged Voice, Video and Data; Network Security; Application Layer Visibility

Network

Power Over Ethernet (PoE) Support
Yes
PoE Power Consumption
370 W
MAC Address Table Size
16K
Jumbo Frame Support
9578 bytes
Remote Management Protocol
DHCP; Syslog; SNMP
Routing Protocol
Static routing
Authentication Method
RADIUS
SFP+ Ports
4
Interfaces
24 x 10/100/1000BASE-T RJ45, 4 x SFP+ 10GbE uplink, 2 x stacking ports, RJ45 Management port

Interfaces / Ports

Interfaces
24 x 10/100/1000BASE-T RJ45, 4 x SFP+ 10GbE uplink, 2 x stacking ports, RJ45 Management port
SFP+ Ports
4

Dimensions & Miscellaneous

Width
19.08 in
Depth
9.84 in
Height
1.72 in
Weight
3.71 kg

Service & Support

Service & Support Type
Full lifetime hardware warranty with next-day advanced replacement included

Special Feature

Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
