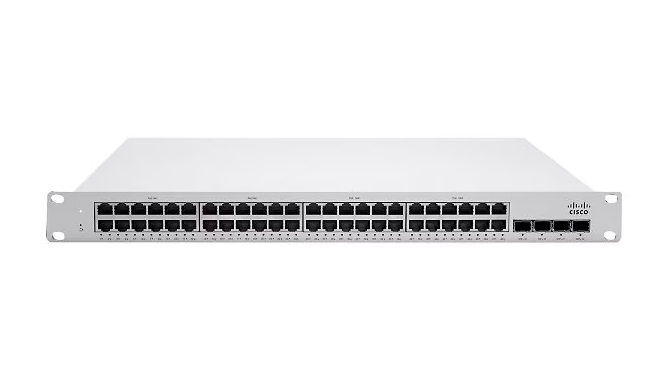

Cisco Meraki Cloud Managed MS225-48FP - switch - 48 ports - managed - rack-mountable

Cisco Meraki Cloud Managed MS225-48FP - switch

Our Price: $3,975.00

Availability: CALL

Product Code: MS225-48FP-HW

Qty:

Description

The Cisco Meraki MS225-48FP-HW is a 48-port cloud-managed Layer 2 access switch with 48 Gigabit Ethernet PoE+ ports and four 10-Gigabit SFP+ uplink ports, supporting 176 Gbps of switching capacity and 80 Gbps of stacking bandwidth. Key features include a 740W PoE budget, six dedicated QoS queues, and management via the Meraki cloud dashboard.

Cisco Meraki MS225-48FP-HW — Specifications (Card)

Cisco Meraki MS225-48FP-HW — Specifications

Primary Information

Network Device Type: Switch
Model: MS225-48FP-HW
Form Factor: 1RU
Connectivity Technology: Wired
Data Transfer Rate: 10 Gbps
Data Link Protocol: Gigabit Ethernet
Status Indicators: LED Status
Networking Compliant Standards: 802.1q, 802.1X
Media Layer Supported: Layer 3
Power / Device Type: Power Supply
Max Power Consumption: 882 W
Features: Managed via Cisco Meraki Dashboard; Remote Packet Capture Tools via Meraki Dashboard; Automatic Firmware upgrades; SNMP/Syslog Integration; IPv4/6 ACL support; 802.1q VLAN tagging; Static routing

Network

Power Over Ethernet (PoE) Support: Yes
PoE Power Consumption: 740 W
Remote Management Protocol: DHCP; Syslog; SNMP
Routing Protocol: Static Routing
SFP+ Ports: 4
Interfaces: 1GbE RJ45, 10GbE SFP+, Hardware Stack Port, Dedicated Mgmt Interface

Interfaces / Ports

Interfaces: 1GbE RJ45, 10GbE SFP+, Hardware Stack Port, Dedicated Mgmt Interface
SFP+ Ports: 4

Dimensions & Miscellaneous

Width: 19 in
Depth: 13.38 in
Height: 1.72 in
Weight: 4.37 kg

Special Feature

Min Operating Temperature: -5 °C
Max Operating Temperature: 50 °C
