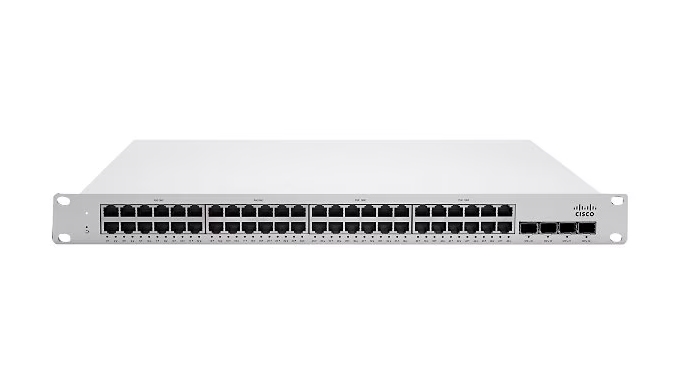

Cisco Meraki Cloud Managed MS225-48LP - switch - 48 ports - managed - rack-mountable
Cisco Meraki Cloud Managed MS225-48LP - switch

Our Price: $3,935.00
Availability: CALL


Product Code: MS225-48LP-HW
Qty:

Description

The Cisco Meraki MS225-48LP-HW is a 48-port cloud-managed Gigabit Ethernet switch with a 370W Power over Ethernet (PoE) budget, four 10-Gigabit SFP+ uplink ports, and two physical stacking ports for building redundancy and performance, supporting both physical and virtual stacking configurations. Key specs include a 176 Gbps switching capacity, 130.95 Mpps forwarding rate, MAC address table size of 32,000, and the ability to provide 802.3af PoE (15.4W) or 802.3at PoE+ (25.5W) per port up to the total budget.

Cisco Meraki MS225-48LP-HW — Specifications (Card)

Cisco Meraki MS225-48LP-HW — Specifications

Primary Information

Network Device Type
Switch
Model
MS225-48LP-HW
Form Factor
1U
Connectivity Technology
Wired
Data Transfer Rate
10 Gbps
Networking / Ports Qty
53
Data Link Protocol
Gigabit Ethernet
Status Indicators
Activity indicator
Networking Compliant Standards
IEEE 802.1x
Media Layer Supported
Layer 2
Power / Device Type
Power Supply
Max Power Consumption
490 W
Features
Managed via Cisco Meraki Dashboard. Remote Packet Capture Tools via Meraki Dashboard. Automatic Firmware upgrades. SNMP/Syslog Integration. IPv4/6 ACL support. 802.1q VLAN tagging. Static routing. 2x Dedicated Stack Ports providing 80G of Stacking bandwidth. Broadcast Storm Control. Dynamic ARP Inspection / DHCP Snooping. 802.1X Authentication. 10/100/1000 Mbps RJ45. 4x 1000/10000 Mbps SFP+. PoE and PoE+ models available for device level powering.

Network

Power Over Ethernet (PoE) Support
Yes
PoE Power Consumption
370 W
Remote Management Protocol
DHCP; Syslog; SNMP
Routing Protocol
DHCP
Authentication Method
RADIUS authentication
SFP+ Ports
4
Interfaces
RJ45; SFP+; Dedicated Mgmt

Interfaces / Ports

Interfaces
RJ45; SFP+; Dedicated Mgmt
SFP+ Ports
4

Dimensions & Miscellaneous

Width
19 in
Depth
13.38 in
Height
1.72 in
Weight
4.37 kg

Service & Support

Service & Support Type
Lifetime hardware warranty

Special Feature

Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
