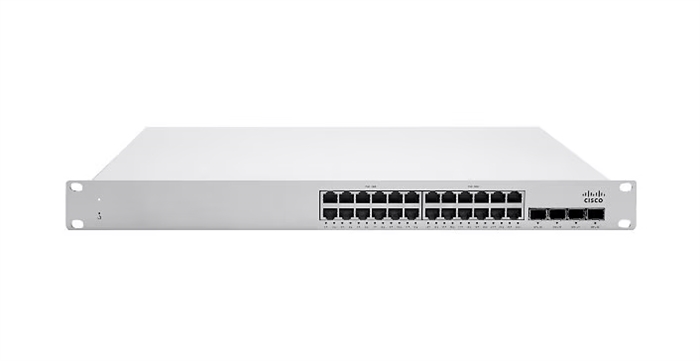

The Cisco Meraki MS250-24P-HW is a cloud-managed, 24-port gigabit Ethernet access switch with 4 x 10G SFP+ uplinks and 370W of PoE+ power. Key features include 128 Gbps switching capacity, 80 Gbps stacking bandwidth, 1U rack-mount design, and management via the Meraki cloud platform for features like zero-touch provisioning, real-time alerts, and automatic firmware updates.

Key Specifications

• Ports: 24 x 10/100/1000 Mbps (PoE+) ports and 4 x 10Gb SFP+ uplink ports.
• PoE Budget: 370W (802.3at).
• Switching Capacity: 128 Gbps (non-blocking).
• Forwarding Rate: 95.24 Mpps.
• Stacking: Up to 80 Gbps of stacking bandwidth.
• Dimensions: 1.72" x 19" x 14.89" (44 mm × 482 mm × 378 mm).
• Weight: 10.59 lb (4.8 kg).
• Mounting: 1U rack-mount kit included.

Management & Features

• Cloud-Managed: Managed via the Meraki dashboard for centralized control.
• Zero-Touch Provisioning: Allows for remote deployment without manual configuration.
• Application Visibility: Provides detailed statistics and insights into network usage and client activity.
• Live Tools: Includes features like packet capture and cable testing for troubleshooting.
• Automatic Updates: Firmware is automatically upgraded and scheduled.
• Redundant Power Supplies: Supports field-replaceable redundant power supplies for higher availability.
