Cisco Meraki Cloud Managed MS250-48FP - switch - 48 ports - managed - rack-mountable

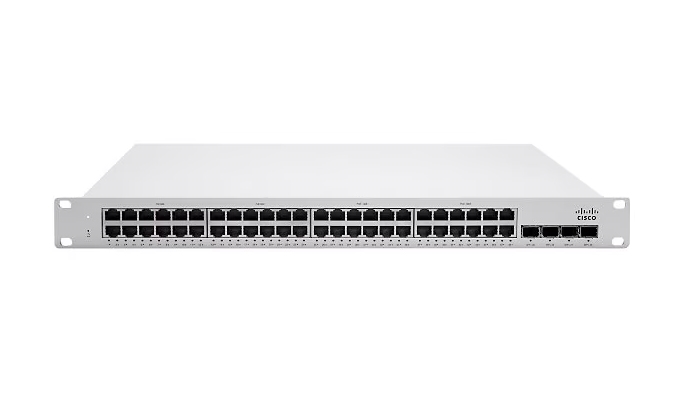

Cisco Meraki Cloud Managed MS250-48FP - switch

Our Price: $6,435.00
Availability: CALL


Product Code: MS250-48FP-HW
Qty:

Description

The Cisco Meraki MS250-48FP-HW is a 48-port, cloud-managed, enterprise-class access switch with 4 x 10GbE SFP+ uplinks, 176 Gbps switching capacity, and a 740W PoE/PoE+ budget. Key features include 80 Gbps stacking, Layer 3 routing, field-replaceable redundant power supplies, and comprehensive cloud-based management with zero-touch provisioning and advanced troubleshooting tools.

Cisco Meraki MS250-48FP-HW — Specifications (Card)

Cisco Meraki MS250-48FP-HW — Specifications

Primary Information

Network Device Type
Switch
Model
MS250-48FP-HW
Form Factor
1RU
Connectivity Technology
Wired
Data Transfer Rate
10 Gbps
Data Link Protocol
10 Gigabit Ethernet
Networking Compliant Standards
802.1p, 802.1Q, 802.1w
Media Layer Supported
Layer 3
Power / Device Type
Power Supply
Power / Installed Qty
2
Uplink Port
4 x SFP+ 10G uplink
Power / Provided
1025 W
Power / Voltage Required
100–240 VAC, 47–63 Hz
MTBF
338,366 hours at 25 °C
Features
Access Switching; Converged Voice, Video and Data Environments; Network Security

Network

Power Over Ethernet (PoE) Support
Yes
PoE Power Consumption
740 W
MAC Address Table Size
32K
Jumbo Frame Support
9578 bytes
Remote Management Protocol
DHCP; Syslog; SNMP
Routing Protocol
Static routing, OSPFv2
Authentication Method
RADIUS
SFP+ Ports
4
Interfaces
48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10G uplink, 2 x stacking ports

Interfaces / Ports

Interfaces
48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10G uplink, 2 x stacking ports
SFP+ Ports
4

Dimensions & Miscellaneous

Width
19.08 in
Depth
20.42 in
Height
1.72 in
Weight
5.82 kg

Service & Support

Service & Support Type
Full lifetime hardware warranty with next-day advanced replacement included

Special Feature

Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
