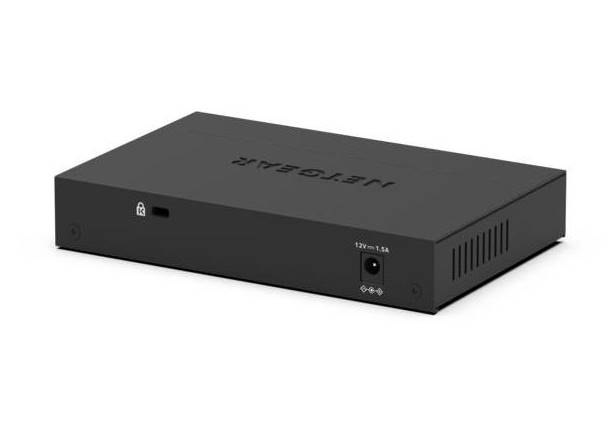

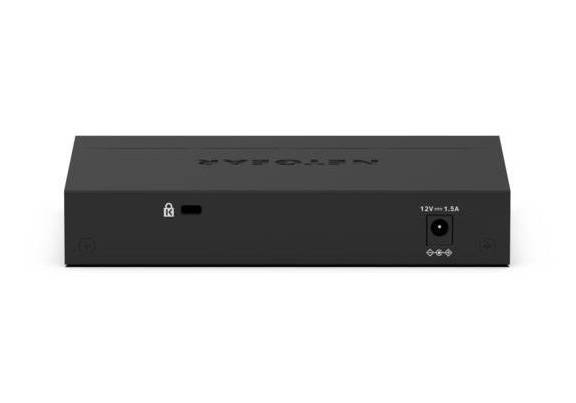

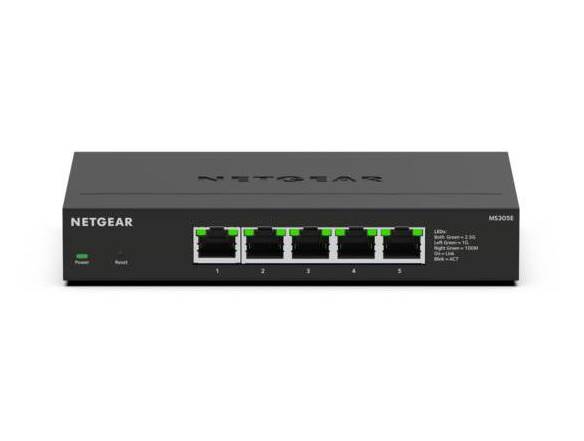

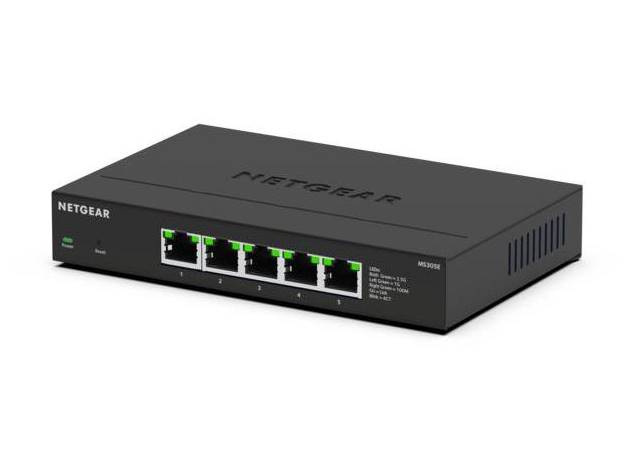

The Netgear MS305E-100NAS is a 5-port, 2.5G multi-gigabit Ethernet Plus switch with 2.5G, 1G, and 100Mbps speeds. Key specifications include 4K MAC address table size, 1MB packet buffer, IEEE 802.1p QoS support, and a fanless, metal design for reliable operation. It has a maximum power consumption of 5.6W, supporting Energy Efficient Ethernet (IEEE 802.3az) and jumbo frames up to 12,288 bytes.

General

• Model: MS305E-100NAS
• Product Type: Ethernet Switch
• Brand: Netgear
• Color: Black
• Form Factor: Desktop, Wall Mountable
• Construction: Metal casing, fanless design

Connectivity and speed

• Number of Ports: 5
• Port Speed: 2.5G, 1G, 100Mbps
• Network Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3az, 802.1p, 802.1Q
• Jumbo Frame Support: 12,288 bytes

Performance and features

• MAC Table Size: 4K
• Packet Buffer Size: 1 MB
• IEEE 802.1p QoS: Yes
• Management: Plus Switch (Smart Managed)
• Plug and Play: Yes, no software to install or configure

Power and environment

• Max Power Consumption: 5.6W
• Power Source: Power Adapter
• Energy Efficient Ethernet: Yes (IEEE 802.3az)
• Operating Temperature: 0-40°C (32-104°F)
• MTBF: 4,273,003 hours

Dimensions and weight

• Dimensions: 6.2 x 4 x 1.1 inches (158 x 101 x 27 mm)
• Weight: 15.87 oz (1 lb or 0.45kg)
