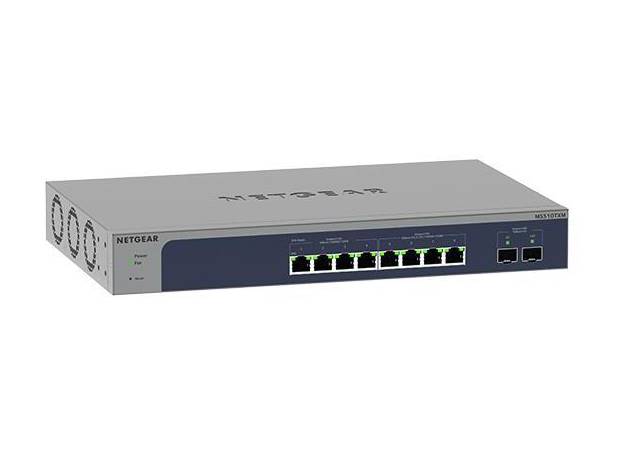

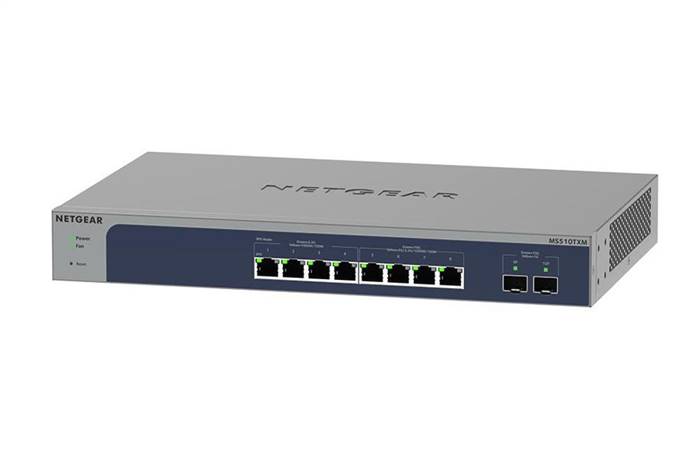

The MS510TXM-100NAS is a 10-port, multi-gigabit, smart managed switch with 8 RJ45 ports (4x 1G/2.5G and 4x 1G/2.5G/5G/10G) and 2 SFP+ ports for fiber connectivity. Its key specifications include a switching capacity of 140 Gbps, Layer 3 support, and advanced features like ACLs, QoS, and VLANs. It has a non-blocking architecture and a 1U rack-mountable form factor.

Port details

• RJ45 Ports: 8 total
• 4 x 1G/2.5G multi-gigabit ports
• 4 x 1G/2.5G/5G/10G multi-gigabit ports
• SFP+ Ports: 2 dedicated 10 Gigabit SFP+ uplink ports

Performance and capabilities

• Switching Capacity: 140 Gbps (non-blocking)
• Forwarding Rate: 14.8 Mpps
• MAC Address Table: 32K entries
• Packet Buffer: 2 MB
• Management: Smart managed with web GUI support for features like VLANs (256 supported), ACLs, and QoS
• Layer: Supports Layer 2, Layer 3, and Layer 4 functions

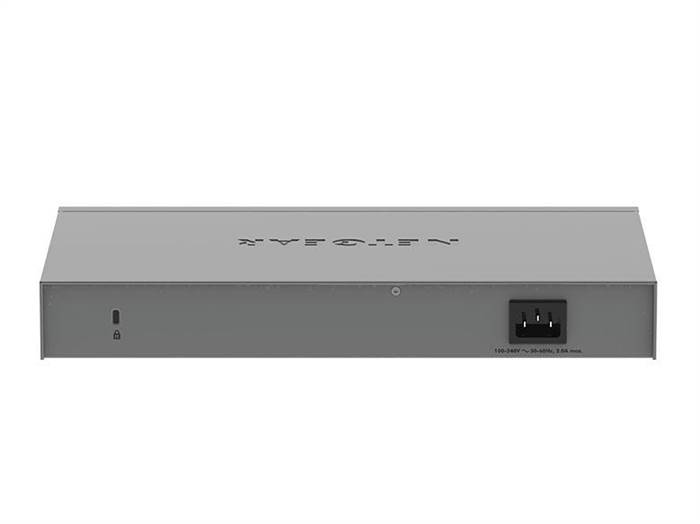

Physical and electrical

• Form Factor: 1U rack-mountable, also supports desktop placement with included rubber feet
• Dimensions: 13 x 8.1 x 1.7 inches
• Weight: 4.59 lbs
• Power Consumption: 47W max

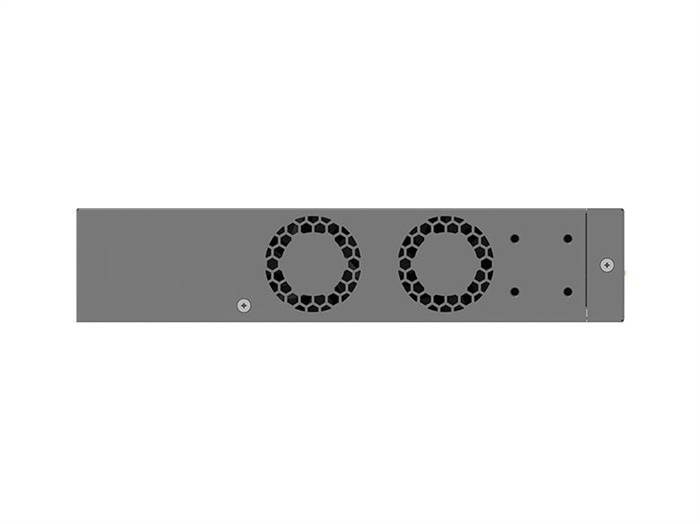

• Cooling: Active cooling with a fan (25 dBA noise level)
• Internal Components: 256 MB RAM, 64 MB flash memory, and a dual-core CPU up to 1 GHz

Compatible Transceivers

The NETGEAR MS510TXM-100NAS switch is compatible with SFP+ transceivers.
