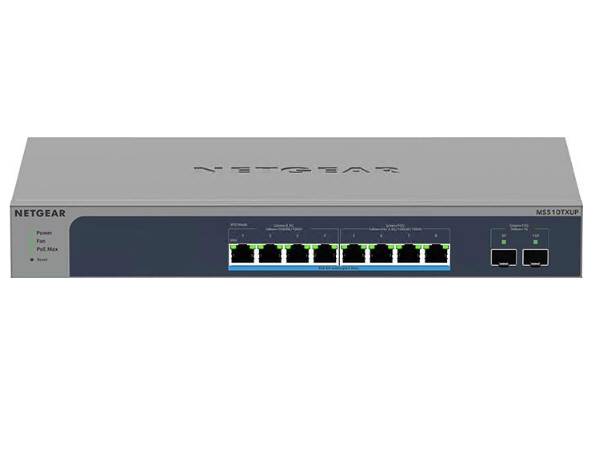

The NETGEAR MS510TXUP-100NAS is a Smart Managed Pro Switch that provides high-speed, multi-gigabit Ethernet connectivity with Power-over-Ethernet capabilities for modern network demands.

Key specifications

• Total ports: The switch features 10 ports in total.
• Multi-gigabit ports: It includes eight RJ-45 copper ports.

• Four ports support 1G and 2.5G speeds.

• The other four ports support 1G, 2.5G, 5G, and 10G speeds.

• Fiber uplink ports: Two dedicated 10G SFP+ ports are included for high-speed fiber uplinks.
• Power over Ethernet (PoE) support:
• All eight copper ports are PoE++ (802.3bt Type 3) capable, providing up to 60W per port.
• It has a total PoE power budget of 295 watts.
• Features uninterrupted PoE, which allows connected devices to receive power even when the switch is rebooting or updating firmware.
• Performance:
• Non-blocking switching architecture delivers 140 Gbps bandwidth.
• Forwarding rate is 14.8 Mpps (million packets per second).
• Management:
• Smart Managed with Layer 2+ and Lite Layer 3 features, such as VLAN routing and static routing.
• Supports the NETGEAR Insight cloud management platform, which allows for remote monitoring and configuration. A one-year subscription is included.
• Physical design:
• Fans: It includes three temperature- and load-based fans for quiet operation.
• Form Factor: Can be used on a desktop or mounted in a rack (kit included).
• Dimensions: 13 x 8.1 x 1.7 inches (330 x 206 x 43 mm).
• Key features:
• Advanced VLAN support for network segmentation.
• Quality of Service (QoS) for traffic prioritization.
• Denial-of-Service (DoS) prevention.
• Energy Efficient Ethernet (IEEE 802.3az).

Compatible Transceivers

The MS510TXUP-100NAS switch has two 10G SFP+ uplink ports and is compatible with SFP+ transceivers.
