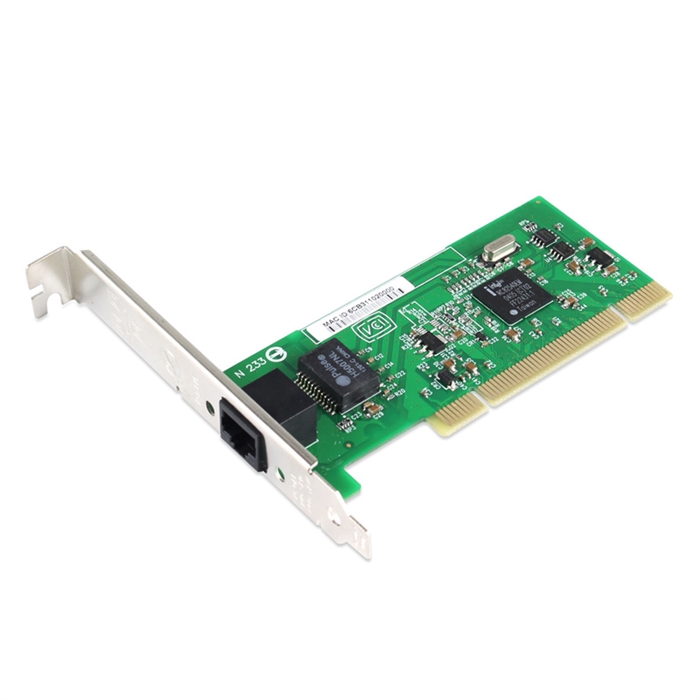

PCI Gigabit Ethernet Single RJ45 Port Network Interface Card, Intel 82540 Chipset Desktop Network Adapter. The NIC-7200MT offers an easy and cost-effective solution for migrating to Gigabit Ethernet over existing Category-5 cabling. Designed for seamless network performance, this 1G Network Interface Card (NIC) supports industry-standard management features such as Wired for Management (WfM) 2.0, DMI 2.0, and SNMP for efficient remote troubleshooting and management. Additionally, it includes PXE 2.0 and Wake-on-LAN (WoL), providing convenient remote boot and software installation capabilities. Key Features- Easy Migration to Gigabit Ethernet: Leverage your existing Category-5 cabling for a smooth, cost-effective transition to Gigabit Ethernet.
- Remote Management: Supports Wired for Management (WfM) 2.0, DMI 2.0, and SNMP for efficient troubleshooting and network management.
- Remote Boot & Installation: PXE 2.0 and Wake-on-LAN (WoL) features enable remote system boot and software installations.
- Intel SingleDriver Technology: Simplifies driver installation and maintenance across different operating systems.
SpecificationsGeneral - Connectors: RJ-45, 1G Network Interface
- IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Wiring: Category-5, 4-pair
Adapter Product Features - Intel SingleDriver technology for streamlined driver support
- Plug and Play Specification Support for easy installation
- Intel PROSet II Utility for straightforward configuration and management
- Auto-negotiation for optimal connection speeds and Full-duplex capability
- Bus Type: PCI 2.2
- Bus Speed: 32/33 MHz, 32/66 MHz
Network Management - Wired for Management (WfM) Baseline v2.0 support
- DMI 2.0 support for enhanced device management
- WMI & SNMP management for remote network management
- Offline Diagnostics for efficient troubleshooting
- Intel Boot Agent for network-based booting
- ACPI Power Management for power-efficient operation
- Wake-on-LAN (WoL) for remote activation
Advanced Software Features - IEEE 802.1Q VLAN tagging for advanced network segmentation
- IEEE 802.3x Flow Control for improved network reliability
- TCP Checksum Offload to reduce CPU overhead
- IEEE 802.1p and Intel Priority Packet II for network traffic prioritization
Technical Features - Data Rate(s) Supported per Port: 10/100/1000 Mbps
- Integrated Memory: 64 KB
- Interrupt Levels: INTA
- IEEE Support: 802.2, 802.3ab
- Data Path Width: 32-bit PCI
- Data Transfer Mode: Bus-master DMA
- Controller Processor: Intel 82540EM
- Typical Power Consumption: 800 mA at +5 VDC
- Operating Temperature: 0°C to 55°C
- Operating Humidity: 85% at +55°C
Operating System Software Support - Microsoft Windows: 2000, XP, NT 4.0, 98 SE, Me
- DOS and DOSODI
- Linux version 2.2.5 or later
The NIC-7200MT offers a high-performance and reliable networking solution, ensuring smooth integration into a wide range of network environments while delivering advanced features for management, performance, and energy efficiency.
|
|
|
 |
|
 |
|
