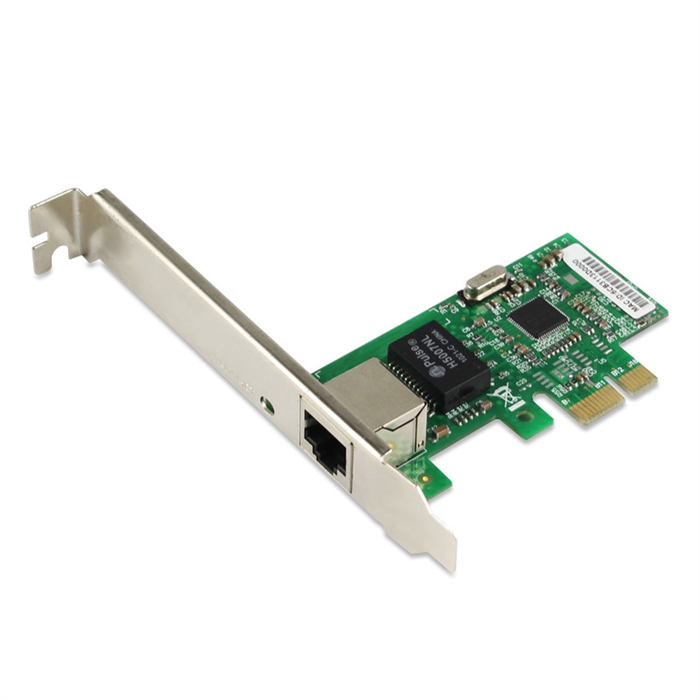

PCIe Gigabit Ethernet Single RJ45 Port Network Interface Card, PCI Express x1 Intel I211 Chipset Desktop Network Adapter.

The NIC-9202CT is a PCI Express-based gigabit network card with a single RJ45 port. Designed for high performance and manageability, it features two transmit and two receive queues, advanced interrupt handling, and support for IPv4/IPv6 checksum offloading. The card supports auto-negotiation (Nway) for seamless speed adjustments and duplex mode configurations, as well as Jumbo Frames for enhanced data transmission efficiency. Its integrated UTP/STP support ensures compatibility with various networking environments, making it a versatile solution for desktops and servers.

Key Features

• Integrated Switching Voltage Regulator (iSVR): Enhances power efficiency and stability.
• Auto-Negotiation (Nway): Automatically negotiates speeds of 10Mbps, 100Mbps, or 1Gbps, with half or full duplex.
• Comprehensive Protocol Support: IEEE 802.3, 802.3u, 802.3ab, and 802.3x compliant for multi-speed Ethernet.
• Advanced Flow Control: Supports Rx thresholds, Tx pause frames, and IEEE 802.3z.
• Energy Efficiency: Includes IEEE 802.3az (Energy Efficient Ethernet) and Smart Power Down (SPD) for reduced power consumption.
• Advanced Power Management: Features Active State Power Management (ASPM), ACPI v2.0c support, and Magic Packet wake-up capabilities.
• Flexible Compatibility: MDI/MDI-X automatic crossover detection for simplified networking setup.
• Large Frame Support: Jumbo Frame capability up to 9.5KB for optimized data throughput.
• PXE Boot Support: Ideal for network boot and management.

Specifications

• Brand: LR-LINK
• Model: LREC9202CT
• Chipset: Intel I211-AT
• Connector: RJ45
• Ports: 1
• Bus Interface: PCI Express 2.1
• Speed: 10/100/1000Mbps with Nway auto-negotiation
• Bracket Options: High-profile and low-profile brackets included
• LED Indicators: Status lights for 1000M, 100M, 10M link/activity and duplex mode
• Jumbo Frame: Supports frames up to 9.5KB
• Application: Desktop use

Supported Operating Systems (NOS)

• Microsoft Windows: Windows 7, Vista (32/64-bit), XP (32/64-bit), CE, NT, 2000 Server, Server 2003 (32/64-bit)
• Unix/Linux: SCO UnixWare 7.x, Open Unix 8.0, SUSE Linux Enterprise Server 9.0, Red Hat Enterprise Linux 4.0, FreeBSD, Sun Solaris
• Others: Novell ODI, Novell Netware, VMWare ESX, Microsoft DOS

The NIC-9202CT is an ideal solution for reliable, high-speed network connectivity, offering robust features, energy efficiency, and broad compatibility across major operating systems.
