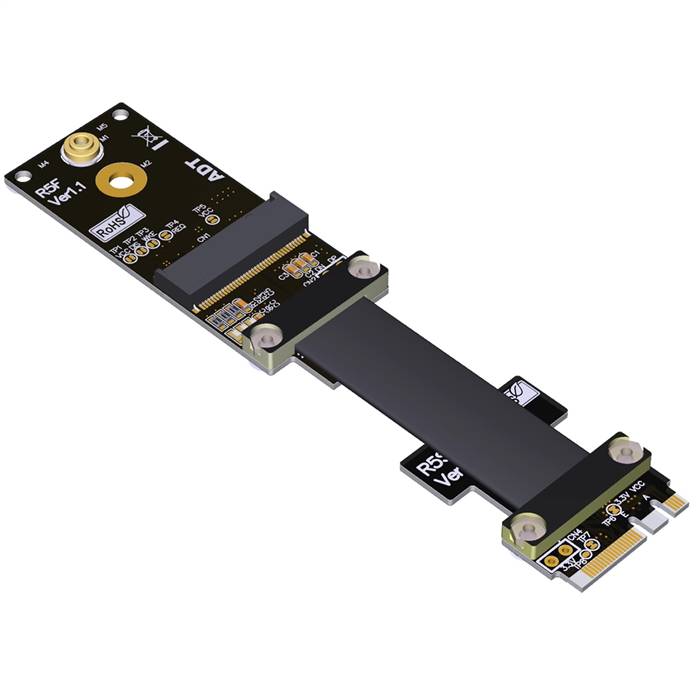

PCIe 3.0 M.2 Key A.E. to M.2 Key A WiFi Female Extension Cable

The PCIe 3.0 M.2 Key A.E. to M.2 Key A WiFi Female Extension Cable is a specialized connectivity solution designed for specific wireless module applications requiring M.2 Key A interface compatibility. This extension cable converts the combined M.2 Key A+E slot to a dedicated M.2 Key A female connector, providing a targeted interface for compatible wireless and expansion modules. The cable maintains the necessary PCIe and USB signal integrity required for reliable module operation while offering flexible physical placement within system enclosures. This solution is particularly valuable for systems requiring specific M.2 Key A module compatibility or for scenarios where physical repositioning of the wireless module improves signal reception or thermal characteristics.

Features

• M.2 Key A.E. to Key A Conversion: Specific interface conversion for M.2 Key A compatible modules
• PCIe 3.0 and USB Support: Maintains necessary PCIe and USB connectivity for module functionality
• Flexible Cable Design: Allows optimal module positioning within system chassis
• Targeted Compatibility: Designed for specific M.2 Key A wireless and expansion modules
• Reliable Signal Integrity: Maintains electrical performance through shielded cable construction
• Space Optimization: Enables module placement in ideal locations for performance
• Standard Connectors: Quality M.2 connectors ensure secure and stable connections

Specifications

• Product Model: PCIe 3.0 M.2 Key A.E. to M.2 Key A WiFi Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: M.2 Key A Female
• Supported Form Factors: 2230, 2242 compatible modules
• Data Transfer Rate: Up to 8.0 GT/s for PCIe signals
• Supported Protocols: PCI Express 3.0, USB 2.0
• Cable Type: Shielded flexible cable assembly
• Cable Length: 15cm, 25cm, 35cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from host slot
• Connector Quality: Rated for multiple insertion cycles

Applications

• Specific Module Compatibility: Systems requiring M.2 Key A interface for specialized wireless modules
• Custom System Integration: Unique configurations where standard module placement is not optimal
• Signal Optimization: Repositioning wireless modules for improved reception characteristics
• Thermal Management: Relocating modules to areas with better airflow and cooling
• Prototype Development: Testing and validation of M.2 Key A compatible devices
• Legacy System Support: Maintaining compatibility with specific M.2 Key A modules
• OEM Solutions: Custom implementations for specific product requirements
• Educational and Research: Interface technology studies and experimentation
