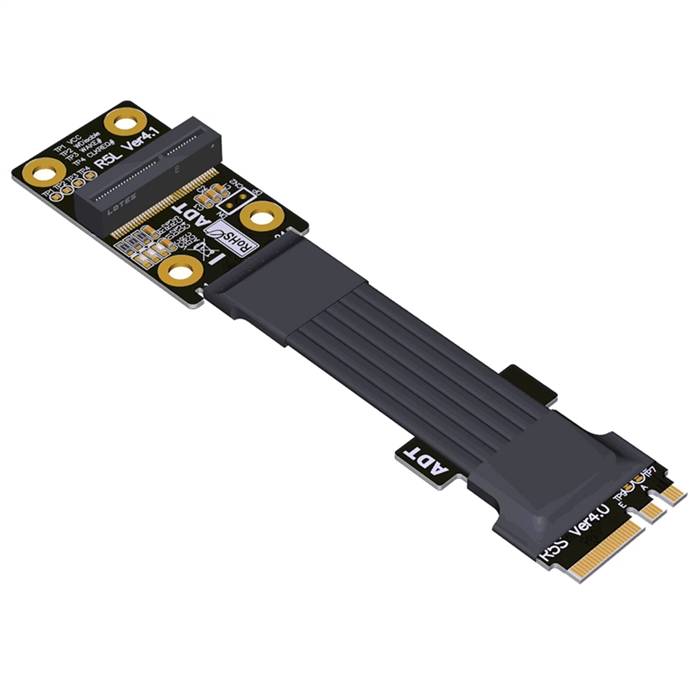

PCIe 3.0 M.2 Key A.E. to M.2 Key E WiFi Female Up R/A Extension Cable

The PCIe 3.0 M.2 Key A.E. to M.2 Key E WiFi Female Up R/A Extension Cable is a specialized connectivity solution designed for flexible installation of M.2 Key E wireless modules in systems with M.2 Key A+E slots. This extension cable converts the standard M.2 Key A+E interface to a dedicated M.2 Key E female connector with an up right-angle orientation, specifically optimized for WiFi and Bluetooth modules. The up right-angle design facilitates improved cable routing and module placement in space-constrained systems, allowing for optimal antenna positioning and thermal management. By maintaining both PCIe and USB signal integrity, this solution ensures reliable wireless performance while providing mechanical flexibility for challenging installation scenarios.

Features

• M.2 Key A.E. to Key E Conversion: Dedicated interface conversion for wireless modules
• Up Right-Angle Connector: 90-degree upward-facing M.2 Key E connector for optimal positioning
• PCIe 3.0 and USB 2.0 Support: Maintains both PCIe x1 for WiFi and USB 2.0 for Bluetooth
• Antenna Cable Management: Integrated IPEX connector positions for optimal antenna routing
• Space-Optimized Design: Up right-angle orientation saves space in compact systems
• Flexible Installation: Enables ideal wireless module placement for signal reception
• Reliable Performance: Maintains signal integrity for stable wireless operation

Specifications

• Product Model: PCIe 3.0 M.2 Key A.E. to M.2 Key E WiFi Female Up R/A Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: M.2 Key E Female Up Right-Angle
• Supported Form Factors: 2230 (WiFi/Bluetooth modules)
• Data Transfer Rate: Up to 8.0 GT/s for PCIe x1 lane
• Supported Protocols: PCI Express 3.0, USB 2.0
• Antenna Connectors: 2x IPEX/MHF4 positions
• Cable Length: 10cm, 15cm, 20cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Up right-angle (90-degree upward)
• Power Delivery: 3.3V from host slot

Applications

• Compact System Builds: Small form factor computers requiring flexible WiFi module placement
• Custom PC Configurations: Unique system layouts with specific wireless module positioning
• Aesthetic Builds: Clean cable management and hidden component placement in showcase systems
• Embedded Systems: Industrial applications requiring optimized wireless antenna positioning
• Upgrade Projects: Adding wireless capability to systems with difficult internal layouts
• Test and Development: Wireless module testing with flexible positioning options
• OEM Solutions: Custom implementations for specific wireless connectivity requirements
• Thermal Management: Systems where direct motherboard mounting would cause overheating issues
