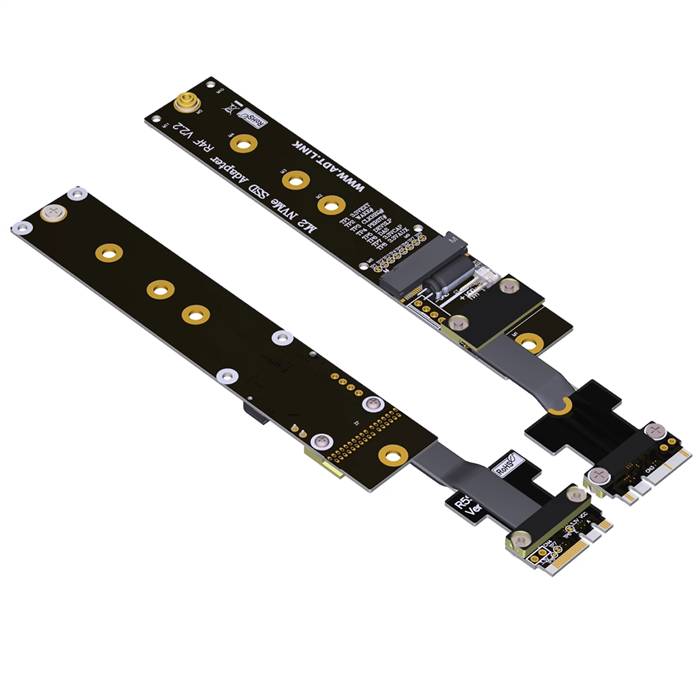

PCIe 3.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable

The PCIe 3.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable is a specialized connectivity solution designed to enable NVMe storage functionality through M.2 Key A+E slots typically reserved for wireless modules. This adapter cable converts the PCIe x1 interface available in M.2 Key A+E slots to a standard M.2 Key M interface compatible with NVMe storage devices. While operating at PCIe 3.0 x1 lane bandwidth due to host interface limitations, this solution provides a practical method for adding NVMe storage in systems where traditional M.2 Key M slots are unavailable or fully occupied. The flexible cable design allows for strategic SSD placement within the system enclosure, facilitating improved thermal management and physical organization while maintaining reliable storage performance.

Features

• Interface Conversion: Converts M.2 Key A+E to M.2 Key M for NVMe storage compatibility
• PCIe 3.0 x1 Performance: Supports single lane bandwidth at 8.0 GT/s data rates
• NVMe Storage Support: Enables connection of M.2 Key M NVMe SSDs through wireless module slots
• Flexible Installation: Cable allows optimal SSD placement for cooling and space utilization
• Signal Integrity: Maintains PCIe 3.0 signal quality through shielded cable construction
• Universal Compatibility: Works with various M.2 Key M NVMe SSDs in 2280 form factor
• Cost-Effective Expansion: Provides additional storage options using available interfaces

Specifications

• Product Model: PCIe 3.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: M.2 Key M Female (PCIe NVMe)
• Supported Form Factors: 2280 NVMe SSDs
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 8 Gbps total bandwidth for x1 lane)
• Supported Protocols: PCI Express 3.0, NVMe 1.3
• Lane Configuration: PCIe x1 lane (limited by Key A+E interface)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from host slot

Applications

• Storage Expansion: Adding NVMe storage to systems with available M.2 Key A+E slots
• Compact System Builds: Small form factor computers requiring additional storage solutions
• Secondary Storage: Additional NVMe drives in systems with limited M.2 Key M slots
• Budget-Conscious Upgrades: Cost-effective storage expansion using existing interfaces
• Prototype Development: Testing and validation of NVMe devices through alternative interfaces
• Legacy System Modernization: Adding NVMe capability to older systems
• OEM Solutions: Custom storage implementations for specific product requirements
• Educational Projects: Learning about interface conversion and storage technologies
