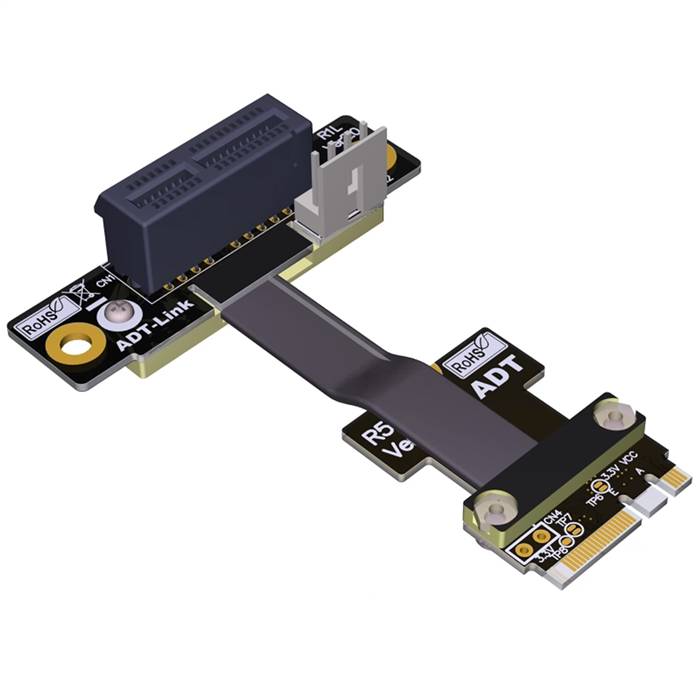

M.2 Key A.E. to PCIe 3.0 x1 Female Up R/A Extension Cable

The M.2 Key A.E. to PCIe 3.0 x1 Female Up R/A Extension Cable is a specialized interface conversion solution designed to enable single-lane PCIe expansion through M.2 Key A+E interfaces with an upward-facing orientation. This adapter cable converts the PCIe x1 lane typically available in M.2 Key A+E slots into a standard PCIe 3.0 x1 female connector with an up right-angle configuration. The upward-facing orientation is particularly beneficial for systems where traditional horizontal card installation is not feasible or where optimal accessibility and thermal management require upward-facing card placement. This solution is ideal for connecting various x1 PCIe devices such as USB expansion cards, network adapters, or other peripherals in compact systems and specialized applications where traditional expansion slots are unavailable.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 3.0 x1 Female Up R/A: Up right-angle PCIe x1 slot for expansion cards
• Upward Orientation: 90-degree upward-facing connector for improved accessibility and cooling
• PCIe 3.0 Compatibility: Supports single lane bandwidth at 8.0 GT/s data rates
• Space-Optimized Design: Up right-angle connector facilitates better card access and airflow
• Targeted Application: Ideal for various PCIe x1 expansion cards and peripherals
• Flexible Implementation: Enables PCIe card usage in systems without traditional x1 slots

Specifications

• Product Model: M.2 Key A.E. to PCIe 3.0 x1 Female Up R/A Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 3.0 x1 Female Up Right-Angle
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 8 Gbps total bandwidth)
• Supported Protocols: PCI Express 3.0
• Lane Configuration: PCIe x1 lane
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Up right-angle (90-degree upward)
• Power Delivery: Provides necessary power to connected PCIe devices

Applications

• Accessibility-Focused Systems: Configurations where upward card orientation improves connector access
• Compact Workstations: Professional workstations requiring upward-facing card installation for peripheral connectivity
• Thermal Management: Systems where upward orientation enhances airflow around expansion cards
• Custom PC Builds: Unique system configurations with specific orientation requirements
• Peripheral Expansion: Installing USB expansion cards, audio interfaces, and other x1 peripherals
• Prototype Development: Testing and validation of PCIe x1 devices in upward orientation
• Embedded Systems: Industrial applications requiring specific upward card mounting
• OEM Solutions: Custom implementations for products with specific accessibility and thermal requirements
