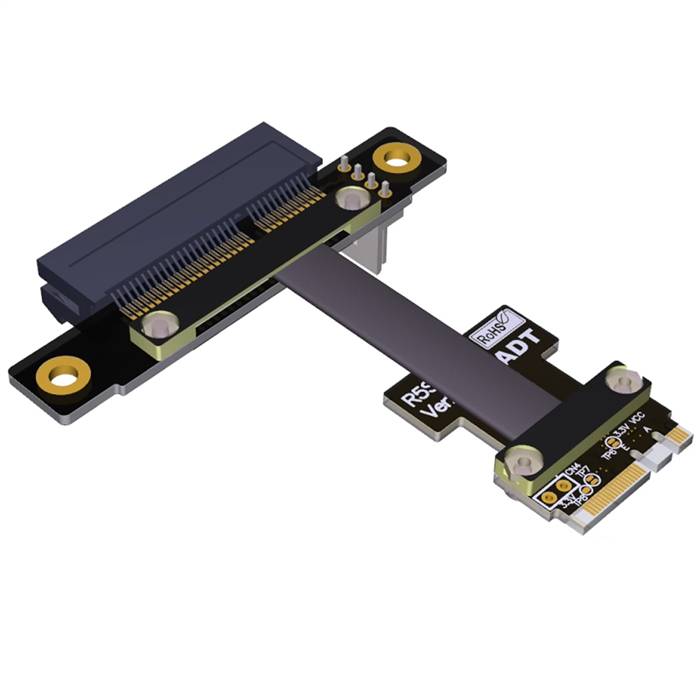

M.2 Key A.E. to PCIe 3.0 x4 Female Extension Cable

The M.2 Key A.E. to PCIe 3.0 x4 Female Extension Cable is a practical interface conversion solution designed to enable PCIe expansion through M.2 Key A+E interfaces. This adapter cable converts the limited PCIe lanes available in M.2 Key A+E slots into a standard PCIe 3.0 x4 female connector, providing a versatile expansion solution for systems lacking traditional PCIe slots. The x4 interface offers excellent compatibility with various expansion cards including storage controllers, network adapters, and other peripherals that benefit from higher bandwidth than x1 connections. While the actual bandwidth is constrained by the host M.2 interface capabilities, this solution provides an effective method for adding PCIe functionality to compact systems, all-in-one computers, and specialized devices where traditional expansion slots are not available but M.2 interfaces are present.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 3.0 x4 Female Connector: Standard PCIe x4 slot for expansion cards
• PCIe 3.0 Compatibility: Supports available PCIe lanes at 8.0 GT/s data rates
• Versatile Expansion: Accommodates various x4 and x16 expansion cards (electrically x4)
• Cost-Effective Solution: Provides PCIe functionality using available M.2 interfaces
• Universal Compatibility: Works with various PCIe 3.0 expansion cards
• Direct Connection: Simple interface conversion without additional components

Specifications

• Product Model: M.2 Key A.E. to PCIe 3.0 x4 Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 3.0 x4 Female
• Data Transfer Rate: Up to 8.0 GT/s per lane (bandwidth limited by available M.2 lanes)
• Supported Protocols: PCI Express 3.0
• Lane Configuration: PCIe x1 or x2 lanes (depending on host M.2 slot capability)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 25cm, 35cm, 45cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: Provides necessary power to connected PCIe devices
• Compatibility: Windows, Linux, macOS

Applications

• Compact System Expansion: Adding PCIe card functionality to small form factor computers
• Storage Controller Installation: Adding storage controller cards or NVMe adapters
• Network Appliance Upgrades: Installing network interface cards in compact systems
• Workstation Enhancements: Professional workstations requiring additional expansion options
• All-in-One Computers: Expanding capabilities of integrated systems with M.2 interfaces
• Budget-Conscious Upgrades: Cost-effective PCIe expansion using existing M.2 slots
• Prototype Development: Testing and validation of PCIe devices through alternative interfaces
• Educational Environments: Learning about interface conversion and expansion technologies
