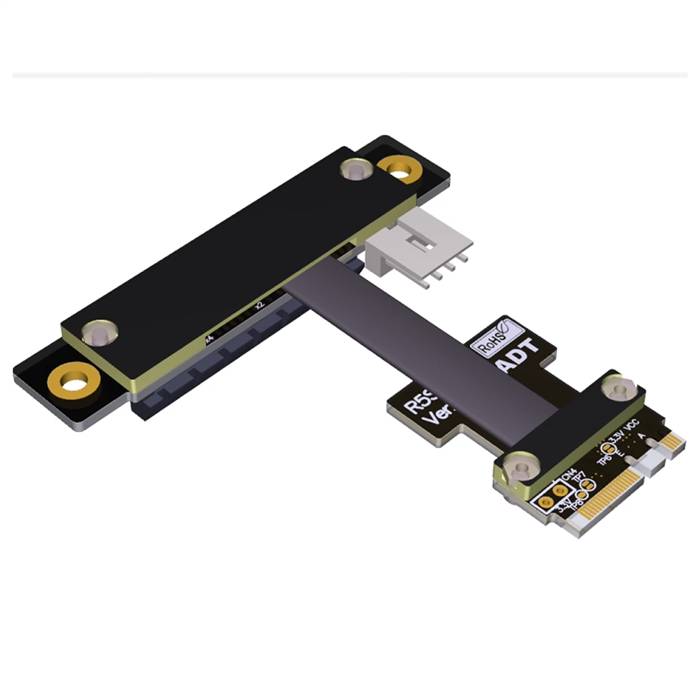

M.2 Key A.E. to PCIe 3.0 x4 Female Down R/A Extension Cable

The M.2 Key A.E. to PCIe 3.0 x4 Female Down R/A Extension Cable is a specialized interface conversion solution designed to enable PCIe expansion through M.2 Key A+E interfaces with a downward-facing orientation. This adapter cable converts the limited PCIe lanes available in M.2 Key A+E slots into a PCIe 3.0 x4 female connector with a down right-angle configuration. The downward-facing orientation addresses specific chassis layout requirements where traditional card orientation would cause mechanical interference or where space constraints necessitate a low-profile installation. The x4 interface provides optimal compatibility for various expansion cards including storage controllers, network adapters, and other peripherals that benefit from PCIe connectivity, making this solution ideal for space-constrained systems with specific mechanical requirements and installation constraints.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 3.0 x4 Female Down R/A: Down right-angle PCIe x4 slot for expansion cards
• Downward Orientation: 90-degree downward-facing connector for specific layout requirements
• PCIe 3.0 Compatibility: Supports available PCIe lanes at 8.0 GT/s data rates
• Space-Optimized Design: Down right-angle connector minimizes vertical space requirements
• Targeted Bandwidth: x4 interface suitable for various mid-range expansion cards
• Flexible Application: Enables PCIe card usage in systems without traditional x4 slots

Specifications

• Product Model: M.2 Key A.E. to PCIe 3.0 x4 Female Down R/A Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 3.0 x4 Female Down Right-Angle
• Data Transfer Rate: Up to 8.0 GT/s per lane (bandwidth limited by available M.2 lanes)
• Supported Protocols: PCI Express 3.0
• Lane Configuration: PCIe x1 or x2 lanes (depending on host M.2 slot capability)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Down right-angle (90-degree downward)
• Power Delivery: Provides necessary power to connected PCIe devices

Applications

• Low-Profile System Expansion: Adding PCIe card functionality to systems with minimal vertical clearance
• Compact Workstations: Professional workstations requiring downward-facing card installation
• Custom Chassis Layouts: Systems where downward card orientation solves mechanical constraints
• Storage Expansion: Installing storage controller cards in space-constrained environments
• Network Appliance Upgrades: Adding network interface cards in compact systems
• Embedded Systems: Industrial applications with specific orientation requirements
• Prototype Development: Testing and validation of PCIe devices in downward x4 orientation
• OEM Solutions: Custom implementations for products with specific mechanical constraints
