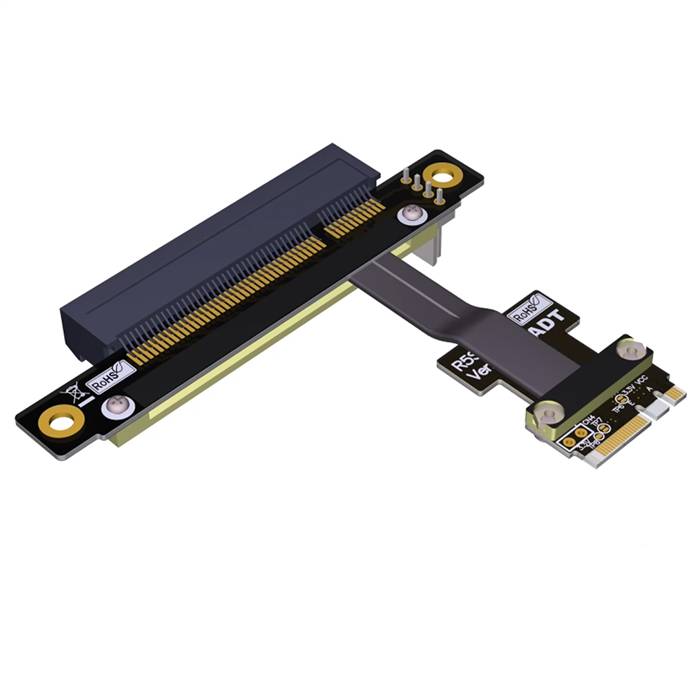

M.2 Key A.E. to PCIe 3.0 x8 Female Extension Cable

The M.2 Key A.E. to PCIe 3.0 x8 Female Extension Cable is a practical interface conversion solution designed to enable PCIe expansion card connectivity through M.2 Key A+E interfaces. This adapter cable converts the limited PCIe lanes available in M.2 Key A+E slots into a standard PCIe 3.0 x8 female connector, providing a versatile expansion solution for systems lacking traditional PCIe slots. The x8 interface offers compatibility with a broad range of mid-range expansion cards including network adapters, storage controllers, and various peripheral cards. While the actual bandwidth is constrained by the host M.2 interface capabilities, this solution provides a cost-effective method for adding PCIe functionality to compact systems, all-in-one computers, and specialized devices where traditional expansion slots are not available.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 3.0 x8 Female Connector: Standard PCIe x8 slot for expansion cards
• PCIe 3.0 Compatibility: Supports available PCIe lanes at 8.0 GT/s data rates
• Versatile Expansion: Accommodates various x8 and x16 expansion cards (electrically x8)
• Cost-Effective Solution: Provides PCIe functionality using available M.2 interfaces
• Universal Compatibility: Works with various PCIe 3.0 expansion cards
• Direct Connection: Simple interface conversion without additional components

Specifications

• Product Model: M.2 Key A.E. to PCIe 3.0 x8 Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 3.0 x8 Female
• Data Transfer Rate: Up to 8.0 GT/s per lane (bandwidth limited by available M.2 lanes)
• Supported Protocols: PCI Express 3.0
• Lane Configuration: PCIe x1 or x2 lanes (depending on host M.2 slot capability)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 25cm, 35cm, 45cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: Provides necessary power to connected PCIe devices
• Compatibility: Windows, Linux, macOS

Applications

• Compact System Expansion: Adding PCIe card functionality to small form factor computers
• Network Appliance Upgrades: Installing network cards in systems with M.2 interfaces
• Storage Controller Expansion: Adding storage controller cards to compact systems
• Workstation Enhancements: Professional workstations requiring additional expansion options
• All-in-One Computers: Expanding capabilities of integrated systems with M.2 interfaces
• Budget-Conscious Upgrades: Cost-effective PCIe expansion using existing M.2 slots
• Prototype Development: Testing and validation of PCIe devices through alternative interfaces
• Educational Environments: Learning about interface conversion and expansion technologies
