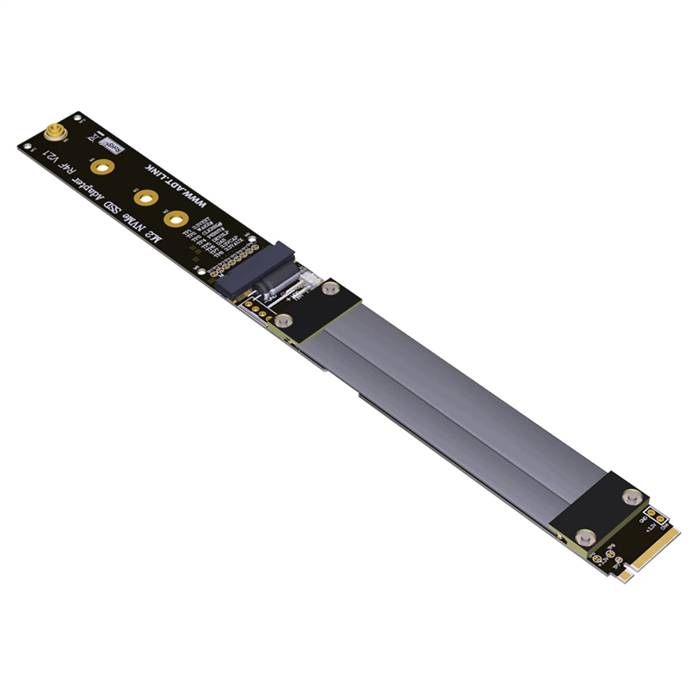

PCIe 3.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female SSD Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female SSD Extension Cable is a fundamental connectivity solution designed to extend the physical reach of M.2 NVMe storage devices within computer systems. This cable provides a reliable extension path from the motherboard's M.2 slot to a remotely mounted SSD, enabling improved thermal management and flexible component placement. By maintaining signal integrity at PCIe 3.0 data rates, this solution allows users to optimize their system layout while preserving full storage performance. Ideal for system integrators, PC enthusiasts, and various computing applications, this extension cable offers both functional flexibility and reliable high-speed storage connectivity.

Features

• PCIe 3.0 Compatibility: Supports data transfer rates up to 8.0 GT/s per lane
• Universal M.2 Support: Works with all standard M.2 SSD form factors including 2230, 2242, 2260, 2280, and 22110
• Reliable Signal Integrity: Engineered construction minimizes signal degradation
• Thermal Management: Enables strategic SSD placement for improved cooling and performance
• Flexible Installation: Slim cable design allows for easy routing in various system configurations
• Secure Connection: Robust connectors with positive locking mechanism ensure stable operation
• Space Optimization: Helps resolve clearance issues in compact system builds

Specifications

• Product Model: PCIe 3.0 M.2 NVMe Key-M Male to Female Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female
• Interface Support: PCIe 3.0 x4 lanes
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 32 Gbps total bandwidth)
• Supported Protocols: NVMe 1.3, AHCI
• Cable Type: Shielded cable assembly
• Cable Length: 10cm, 20cm, 30cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm
• Power Delivery: Supports 3.3V power distribution to SSD

Applications

• Custom PC Building: Flexible SSD placement for optimized system layouts
• System Upgrades: Adding NVMe storage to systems with limited motherboard access
• Thermal Management: Relocating SSDs away from heat sources to prevent thermal throttling
• Server Configuration: Extending storage connectivity in rack server environments
• Test and Development: Prototyping and validation of storage configurations
• Workstation Expansion: Adding high-speed storage to creative and engineering workstations
• OEM Solutions: Integration into pre-built systems and manufacturing processes
• Space-Constrained Builds: Solving clearance issues in compact computer cases
