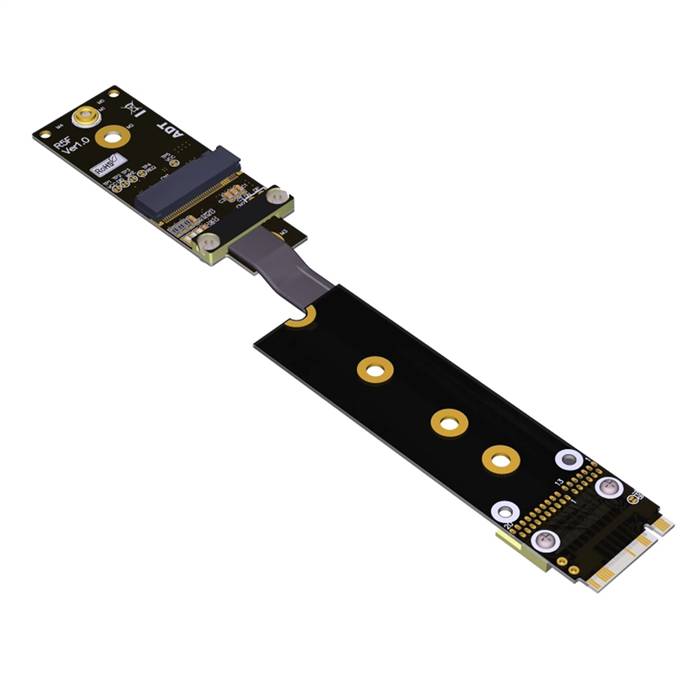

PCIe 3.0 M.2 NVMe Key-M Male to M.2 WIFI Key-A.E Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to M.2 WIFI Key-A.E Extension Cable is an internal adapter cable that enables the connection of M.2 Key-A or Key-E form factor wireless cards to a standard M.2 Key-M slot. This solution effectively repurposes an NVMe storage slot for wireless connectivity applications, providing both PCIe and USB 2.0 signals required for Wi-Fi and Bluetooth functionality. The cable is engineered to maintain signal integrity for reliable wireless performance and is particularly useful for custom system builds, motherboard upgrades, and small form factor applications where dedicated Key-A/E slots are unavailable or inconveniently located.

Features

• Interface Conversion: Adapts M.2 Key-M socket to M.2 Key-A/E socket compatibility
• Dual Signal Support: Carries PCIe x1 lane for WLAN and USB 2.0 for Bluetooth functionality
• Cost-Effective Solution: Enables Wi-Fi/Bluetooth capability without requiring a dedicated motherboard slot
• Flexible Installation: Allows optimal positioning of wireless modules for antenna connection
• Space-Optimized Design: Slim cable profile facilitates easy routing in compact systems
• Secure Connection: Positive-locking connectors ensure reliable contact
• Backward Compatibility: Supports PCIe 3.0 and earlier specifications

Specifications

• Product Model: PCIe 3.0 M.2 Key-M to M.2 Key-A/E Extension Cable
• Host Connector: M.2 Key-M Male (PCIe)
• Device Connector: M.2 Key-A/E Female
• Supported Interfaces: PCIe 3.0 x1, USB 2.0
• Data Transfer Rates: PCIe up to 8.0 GT/s, USB 2.0 up to 480 Mbps
• Supported Protocols: Wi-Fi (802.11 a/b/g/n/ac/ax), Bluetooth
• Cable Type: Multi-conductor shielded cable
• Cable Length: 10cm, 20cm, 30cm
• Operating Temperature: 0°C to +70°C
• Impedance: 85? ±15% (PCIe), 90? ±15% (USB)
• Durability Rating: 2,000 mating cycles
• Power Delivery: Provides 3.3V power to wireless module

Applications

• Desktop Computer Integration: Adding Wi-Fi/Bluetooth to motherboards without integrated wireless capability
• Small Form Factor Builds: Flexible placement of wireless cards in compact PC cases
• Motherboard Upgrade Projects: Enhancing system functionality by utilizing available M.2 slots
• Custom PC Assembly: Providing wireless connectivity options in bespoke computer systems
• OEM System Manufacturing: Integration into production systems requiring specific wireless card placement
• Repair and Maintenance: Replacing failed onboard wireless solutions with standard M.2 modules
• Prototyping and Development: Testing wireless modules in various system configurations
• Retrofit Solutions: Modernizing older systems with current wireless technology standards
