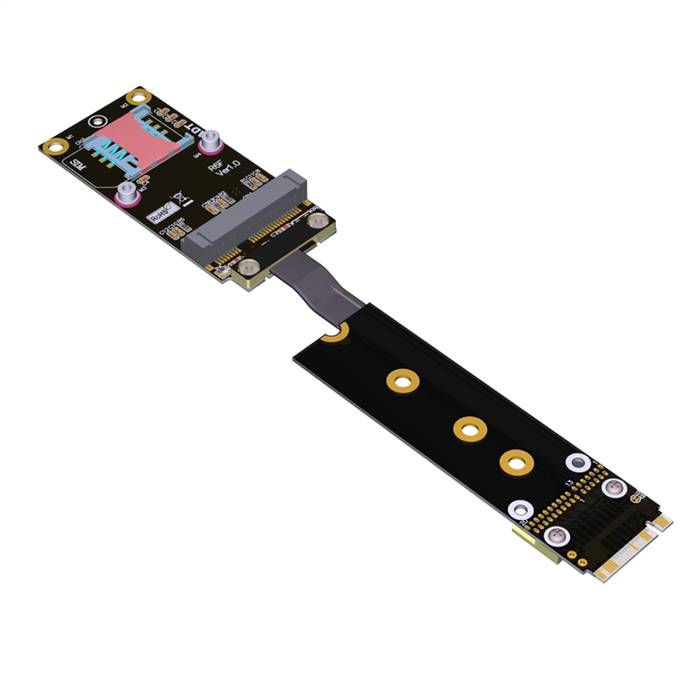

PCIe 3.0 M.2 NVMe Key-M Male to Mini PCIe Female Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to Mini PCIe Female Extension Cable is a practical interface adapter designed to connect modern motherboards with legacy Mini PCIe expansion devices. This cable provides a reliable bridge from a standard M.2 Key-M slot to a Mini PCIe form factor, enabling users to integrate various Mini PCIe cards into contemporary systems that no longer include native Mini PCIe slots. It offers a cost-effective solution for repurposing existing hardware components and expanding system functionality without requiring motherboard upgrades.

Features

• Legacy Interface Support: Enables connection of Mini PCIe devices to modern M.2 interfaces
• PCIe 3.0 Compatibility: Supports data rates up to 8.0 GT/s per lane
• Universal Application: Suitable for various Mini PCIe devices including wireless cards and solid-state drives
• Space-Efficient Design: Compact form factor ideal for small form factor systems
• Reliable Performance: Maintains stable signal transmission between different interface generations
• Easy Installation: Simple plug-and-play setup without requiring additional drivers
• Durable Construction: Quality materials ensure long-term reliability

Specifications

• Product Model: PCIe 3.0 M.2 to Mini PCIe Extension Cable
• Host Connector: M.2 Key-M Male (PCIe 3.0)
• Device Connector: Mini PCIe Female (52-pin)
• Interface Support: PCIe 3.0 x1 lane configuration
• Data Transfer Rate: Up to 8.0 GT/s (approximately 8 Gbps total bandwidth)
• Supported Protocols: PCI Express 3.0, backward compatible with PCIe 2.0/1.0
• Cable Type: Shielded twisted pair cable
• Cable Length: 20cm, 30cm
• Impedance: 85? ±15%
• Operating Temperature: 0°C to +70°C
• Durability Rating: 1,500 mating cycles
• Power Delivery: Provides 3.3V power to Mini PCIe devices

Applications

• System Upgrade Projects: Adding Mini PCIe functionality to modern motherboards
• Wireless Connectivity: Installing Mini PCIe Wi-Fi, Bluetooth, or cellular cards
• Embedded Systems: Industrial computers and kiosks requiring specific Mini PCIe expansions
• Legacy Hardware Integration: Repurposing existing Mini PCIe devices in new systems
• Development and Testing: Prototyping and validation of Mini PCIe card functionality
• Educational Projects: Learning and experimentation with different interface standards
• Cost-Effective Expansion: Adding features like SSD storage or wireless capabilities without expensive upgrades
• OEM Solutions: Custom integration for specific client requirements involving legacy interfaces
