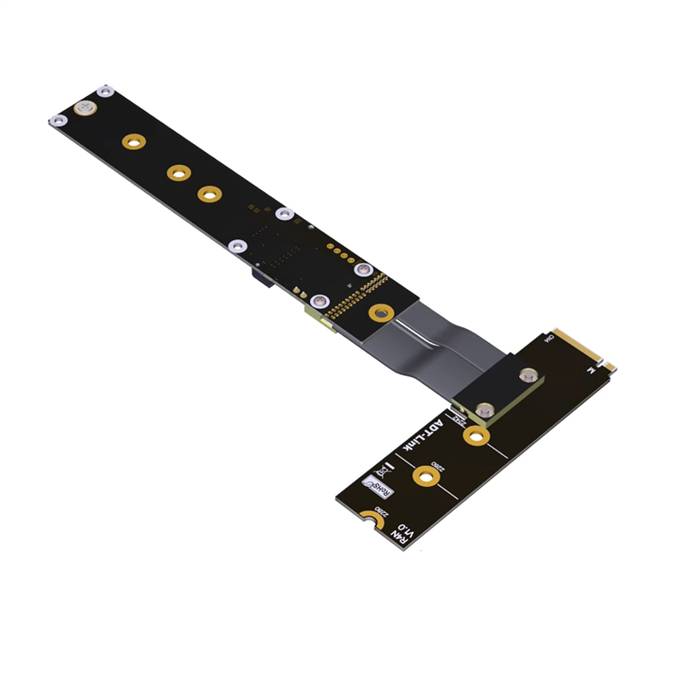

PCIe 3.0 M.2 NVMe Key-M Male to Right Bend M.2 NVMe Key-M Female SSD Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to Right Bend M.2 NVMe Key-M Female SSD Extension Cable is a specialized connectivity solution designed for space-optimized system configurations. This cable features a right-angle bend at the female connector, enabling efficient installation in compact computer cases and systems with limited clearance. By reorienting the SSD connection through a 90-degree turn, this extension cable facilitates cleaner cable routing and improved space utilization while maintaining full PCIe 3.0 performance for NVMe storage devices. The solution is particularly valuable for small form factor builds, densely packed servers, and any application where traditional straight connectors would cause mechanical interference.

Features

• Right-Angle Connector Design: 90-degree bend female connector for space-optimized installations
• PCIe 3.0 Performance: Supports data transfer rates up to 8.0 GT/s per lane
• Space-Efficient Configuration: Solves clearance issues in compact system builds
• Enhanced Cable Management: Enables cleaner internal layouts with reduced cable strain
• Universal Compatibility: Supports all M.2 SSD form factors from 2230 to 22110
• Improved Airflow: Allows strategic SSD positioning for better thermal management
• Secure Connection: Robust connectors with positive locking mechanism

Specifications

• Product Model: PCIe 3.0 M.2 Key-M Male to Right Bend Female Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female with 90-degree right bend
• Interface Support: PCIe 3.0 x4 lanes
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 32 Gbps total bandwidth)
• Supported Protocols: NVMe 1.3, AHCI
• Bend Angle: 90-degree right turn
• Cable Type: Flexible shielded cable
• Cable Length: 8cm, 15cm, 20cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 20mm

Applications

• Small Form Factor Systems: Ideal for Mini-ITX, Micro-ATX, and compact PC builds
• Server Applications: Space-optimized storage configurations in 1U/2U rack servers
• Aesthetic PC Builds: Cleaner cable management for showcase and custom systems
• Embedded Computing: Industrial PCs, kiosks, and applications with space constraints
• Upgrade Projects: Retrofitting NVMe storage into cases with limited clearance
• OEM Integration: Pre-built systems requiring specific component orientation
• Test and Development: Prototyping storage configurations in constrained environments
• Workstation Expansion: Adding high-speed storage to space-limited workstations
