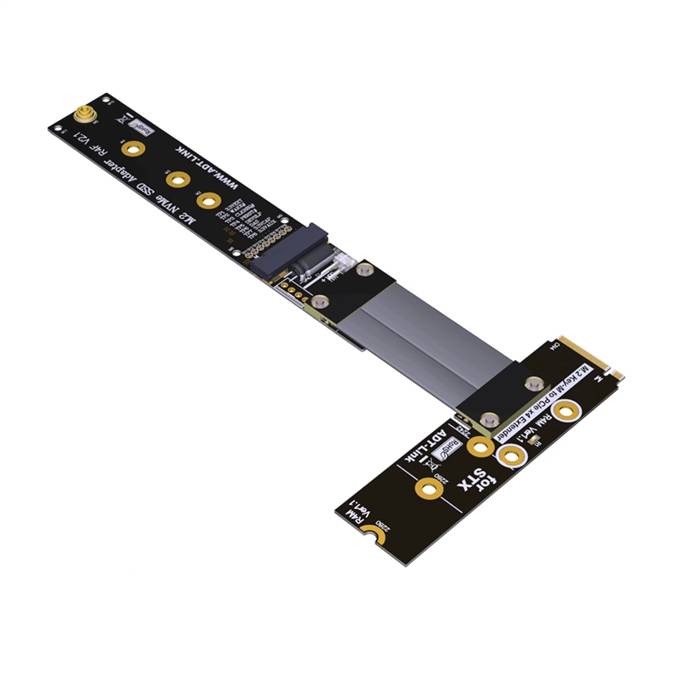

PCIe 3.0 M.2 NVMe Key-M Male to Right Bend M.2 NVMe Key-M Female Turn 180 Degree Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to Right Bend M.2 NVMe Key-M Female Turn 180 Degree Extension Cable is a specialized connectivity solution designed for space-constrained system configurations. This unique cable features a right-angle 180-degree bend design that enables efficient cable routing and optimal space utilization in compact computer cases, small form factor systems, and densely packed server environments. By reorienting the SSD connection through a precise 180-degree turn, this extension cable allows for cleaner internal layouts and improved airflow management while maintaining full PCIe 3.0 performance for NVMe storage devices.

Features

• 180-Degree Right Bend Design: Enables tight space optimization with precise directional change
• PCIe 3.0 Compatibility: Supports data transfer rates up to 8.0 GT/s per lane
• Space-Saving Configuration: Ideal for compact systems where direct straight connections are not feasible
• Enhanced Cable Management: Facilitates cleaner internal layouts and reduced cable clutter
• Thermal Improvement: Allows better airflow around SSD components by repositioning the drive
• Universal M.2 Support: Compatible with all standard M.2 SSD form factors
• Secure Connection: Robust connectors with positive locking mechanism

Specifications

• Product Model: PCIe 3.0 M.2 Key-M Male to Right Bend Female 180 Degree Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female with 180-degree right bend orientation
• Interface Support: PCIe 3.0 x4 lanes
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 32 Gbps total bandwidth)
• Supported Protocols: NVMe 1.3, AHCI
• Bend Angle: 180-degree right turn
• Cable Type: Flexible shielded cable
• Cable Length: 5cm, 8cm, 12cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 15mm

Applications

• Small Form Factor PCs: Ideal for Mini-ITX, HTPC, and other compact computer builds
• Space-Constrained Server Racks: Maximizing component density in 1U and 2U server configurations
• Custom Water-Cooling Loops: Providing clearance for tubing and radiator installations
• Aesthetic PC Builds: Enabling cleaner cable management for showcase systems
• Embedded Systems: Industrial computers and kiosks with limited internal space
• OEM Solutions: Integration into pre-built systems requiring specific component orientation
• Upgrade Projects: Retrofitting high-speed NVMe storage into cases with clearance limitations
• Prototype Development: Testing and validation of storage configurations in constrained environments
